1-640508-0
Connector, Soft Shell; 250 VAC; 9 A (Max.); 0.165 in.; Nylon; Brick Red; 3
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-640508-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

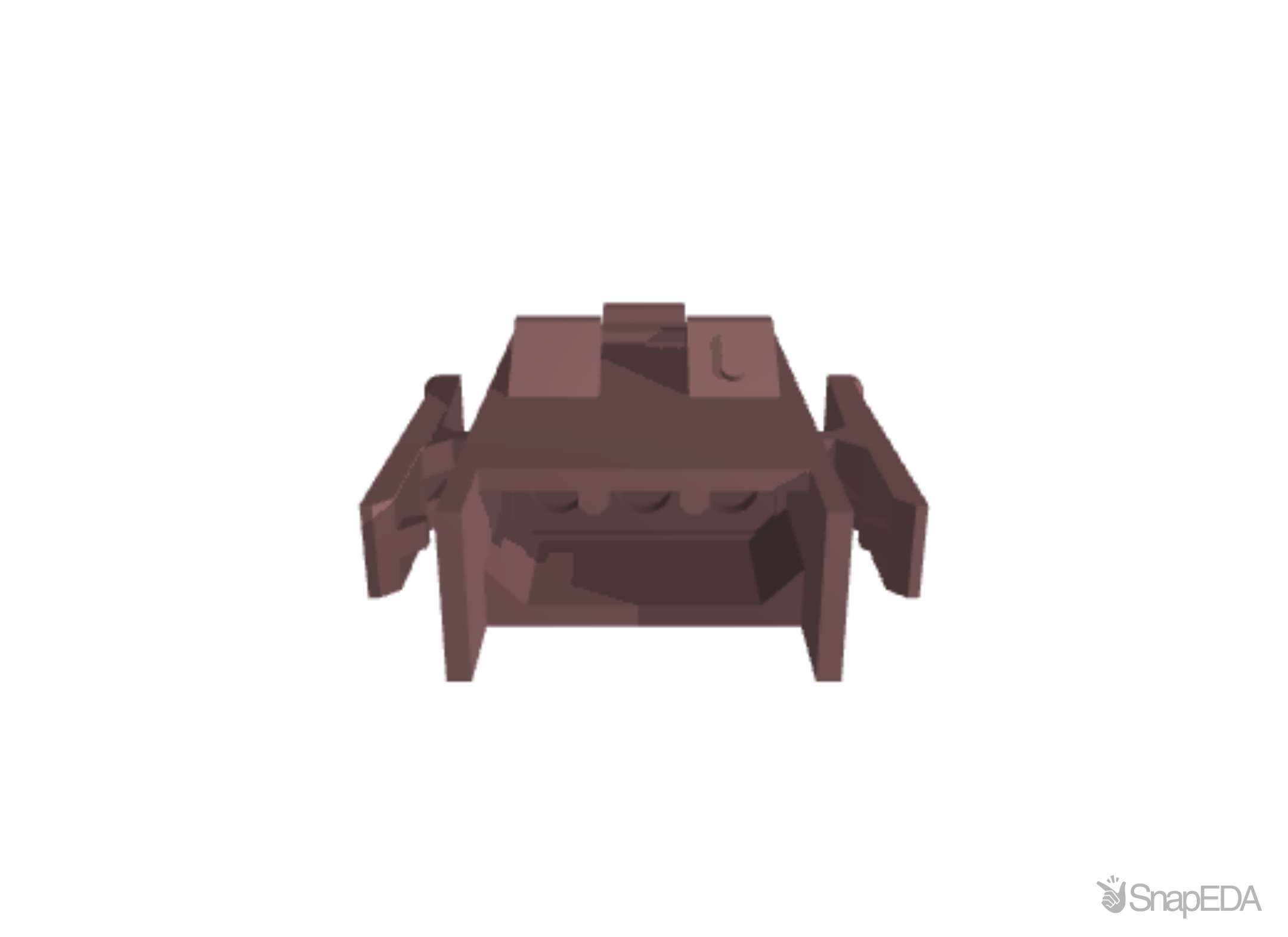

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-640508-0
| Part Name | 1-640508-0 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 4.2 |
| Width | .51 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Wire & Cable |
| Number of Positions | 3 |
| TE Internal Number | 1-640508-0 |
| UL Rating | Recognized |
| Connector System | Wire-to-Panel |
| Housing Type | Receptacle |
| Agency/Standard Number | E28476 |
| Housing Color | Red |
| Number of Signal Positions | 3 |
| Sealable | No |
| Operating Temperature Range | -67 – 221 |
| Packaging Method | Box |
| Packaging Quantity | 1700 |
| Agency/Standard | CSA |
| Length | 26.92 |
| Accepts Wire Insulation Diameter Range | 2.92 |
| RoHS | True |
| Number of Rows | 1 |
| Product Type | Housing |
| UL Flammability Rating | UL 94V-0 |
| Height | 7.37 |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Type | Pin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Mounting Type | Panel Mount |
| Gender | Female |
| Series | AMP CAP |
| Body Orientation | Straight |
| Housing Material | Nylon |
| Width | 12.95 (mm) |
| Length | 23.37 (mm) |
| Number Of Rows | 1 |
| Pitch | 4.2 (mm) |
| For Use With | AMP Soft Shell Pin & Socket Connector |
| Number Of Contacts | 3 |
