1-66400-0
SnapVerified
Phoenix Contact 1664000, CUC-IB6G-J1ST-AT/R4R-PL1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-66400-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

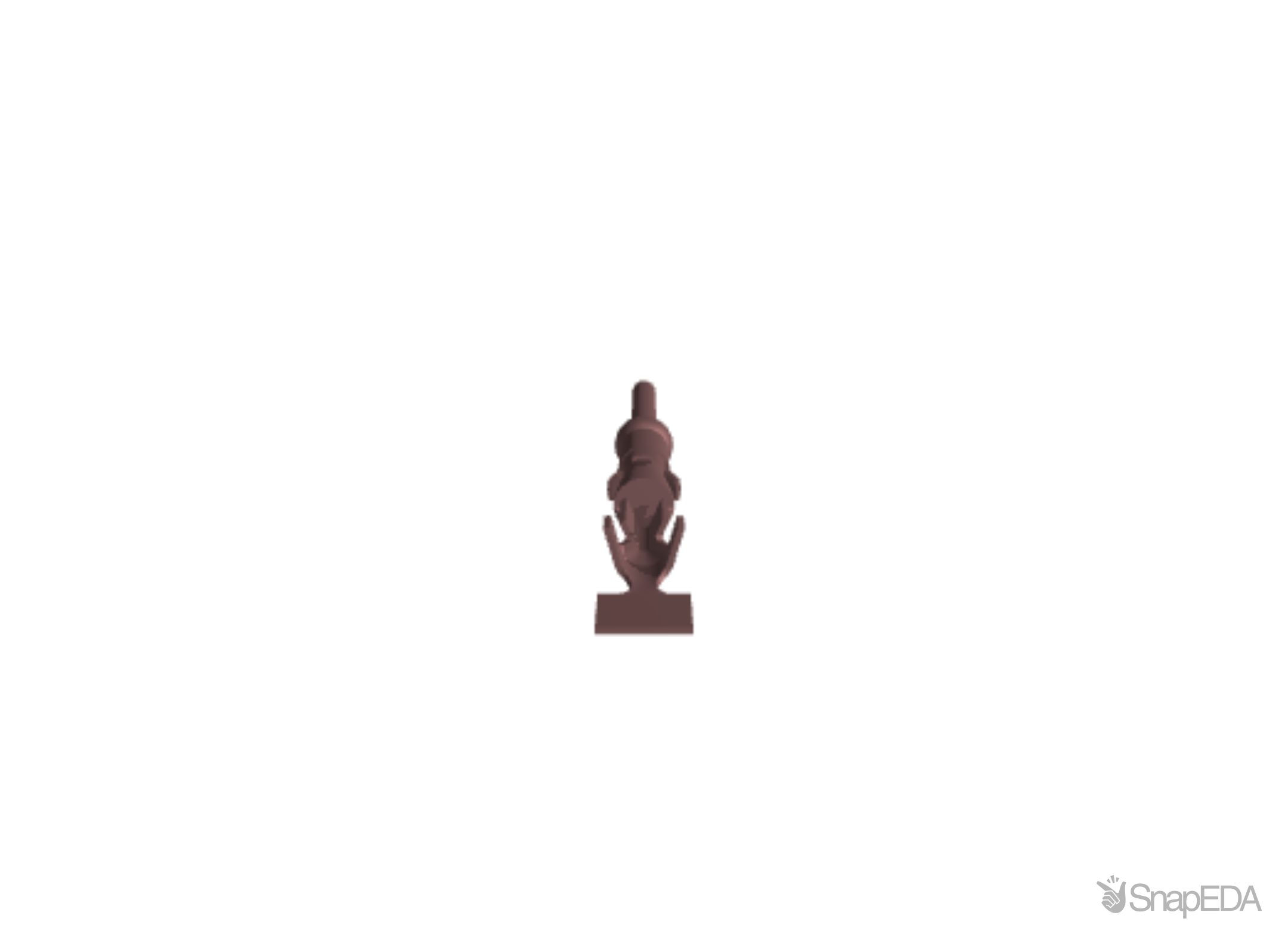

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-66400-0
| Part Name | 1-66400-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Underplate Material Thickness | 1.27 |
| Rated Current (A) | 0.5 |
| Contact Termination Area Plating Finish | Bright |
| Contact Mating Area Plating Material | Tin |
| Certificate/approval | not available |
| Width | 15.75 |
| GTIN | 4067923203297 |
| For Use With | CPC Connectors |
| Connector & Contact Terminates To | Wire & Cable |
| Test Current (A) | 13 |
| Contact Current Rating (Max) (A) | 13 |
| Product Description | RJ45 PCB connector |
| TE Internal Number | 1-66400-0 |
| Circuit Application | Power & Signal |
| Contact Underplating Material | Nickel |
| Contact Base Material | Brass |
| Wire Insulation Support | With |
| Contact Size | 16 |
| Type Of Pcb Contacting | THR connection |
| Operating Temperature Range | -55 – 90 |
| Wire/Cable Type | Discrete Wire |
| Packaging Method | Carton |
| Packaging Quantity | 1000 |
| Depth | 21.5 |
| 端子の下地めっきの材料 | Nickel |
| Accepts Wire Insulation Diameter Range | .08 – .1 |
| Manufacturer Product Designation | RJ45 PCB connector |
| Material Of The Contact Coat | Au (0.762 μm/30 μ") |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1664000 |
| Material Of Insulation | not relevant |
| Pole Number | 8 |
| Contact Termination Area Plating Material | Tin |
| Height | 17.1 |
| Material Of The Contact | Au (0.762 μm/30 μ") |
| Contact Mating Area Plating Thickness | 100 |
| Product Type | Contact |
| Termination Type | Crimp |
| Mating Pin Diameter | .062 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 2.54 |
| Wire Size | .2 – .6 |
| Application Standards | not available |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Size | 20 |
| Series | Type III+ |
| Contact Plating | Lead, Tin |
| Gender | Male |
| For Use With | CPC Connectors |
| Wire Size | 24 → 20 AWG |
