1-770669-2
Circular Connector, 23P AMPSEAL ASSY SNAP-IN GOLD AMPSEAL Series | TE Connectivity 1-770669-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-770669-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

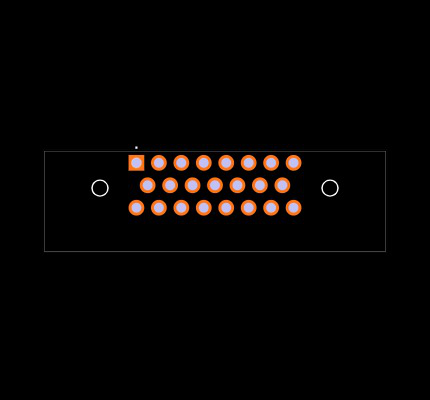

Footprint
No web preview
This Footprint is Available for

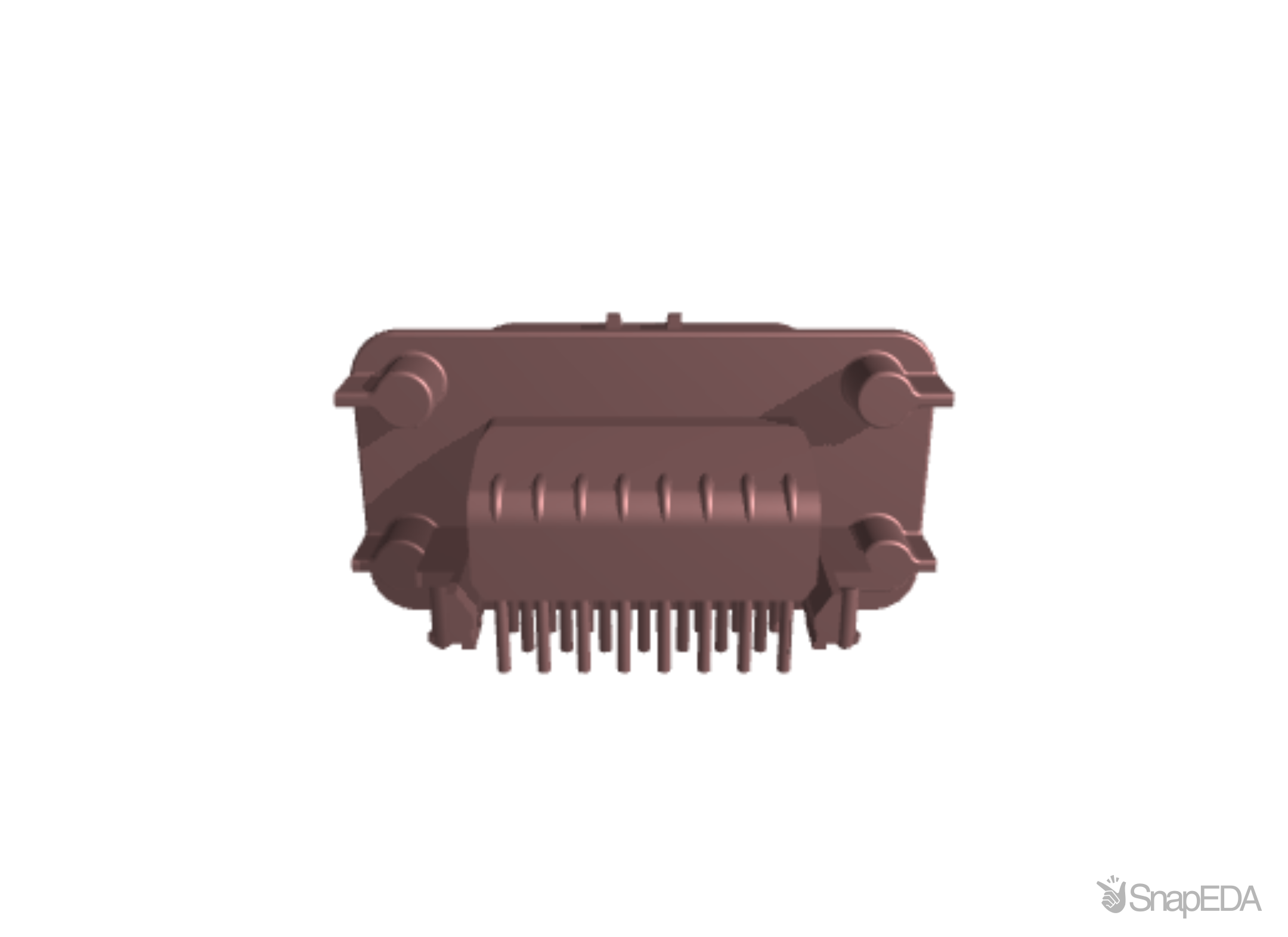

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-770669-2
| Part Name | 1-770669-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .157 |
| Circuit Application | Power & Signal |
| Width | 1.498 |
| Operating Voltage (V) | 250 |
| Number of Positions | 23 |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| Tab Thickness | .051 |
| PCB Thickness (Recommended) | 1.57 |
| Operating Temperature (Max) | 248 |
| TE Internal Number | 1-770669-2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Device |
| Degree of Protection | IP6K9K |
| Number of Rows | 3 |
| RoHS | True |
| Locking Interface | With |
| Number of Signal Positions | 23 |
| Sealable | Yes |
| Number of Sections | 1 |
| Nominal Voltage Architecture (V) | 42 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -40 to 257 |
| Shielded | No |
| Mounting Holes | With |
| Termination Method | Through Hole - Solder |
| Length | 2.3937 |
| Pin Diameter | .051 |
| Voltage Rating (Max) (V) | 250 |
| Tab Width | 1.3 |
| Color | Natural |
| Hybrid Header | No |
| PCB Mount Alignment | With |
| Profile Height from PCB | .929 |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Interface Plating | Gold (Au) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
