1-776200-5
AMPSEAL 23 way vertical plug header | TE Connectivity 1-776200-5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-776200-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

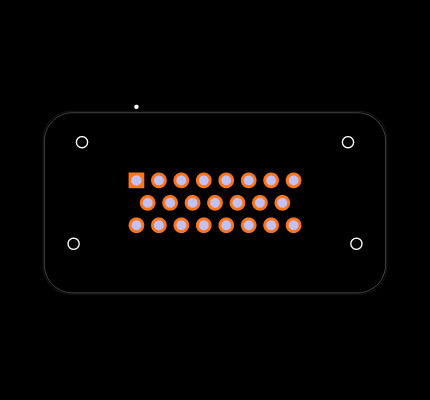

Footprint
No web preview
This Footprint is Available for

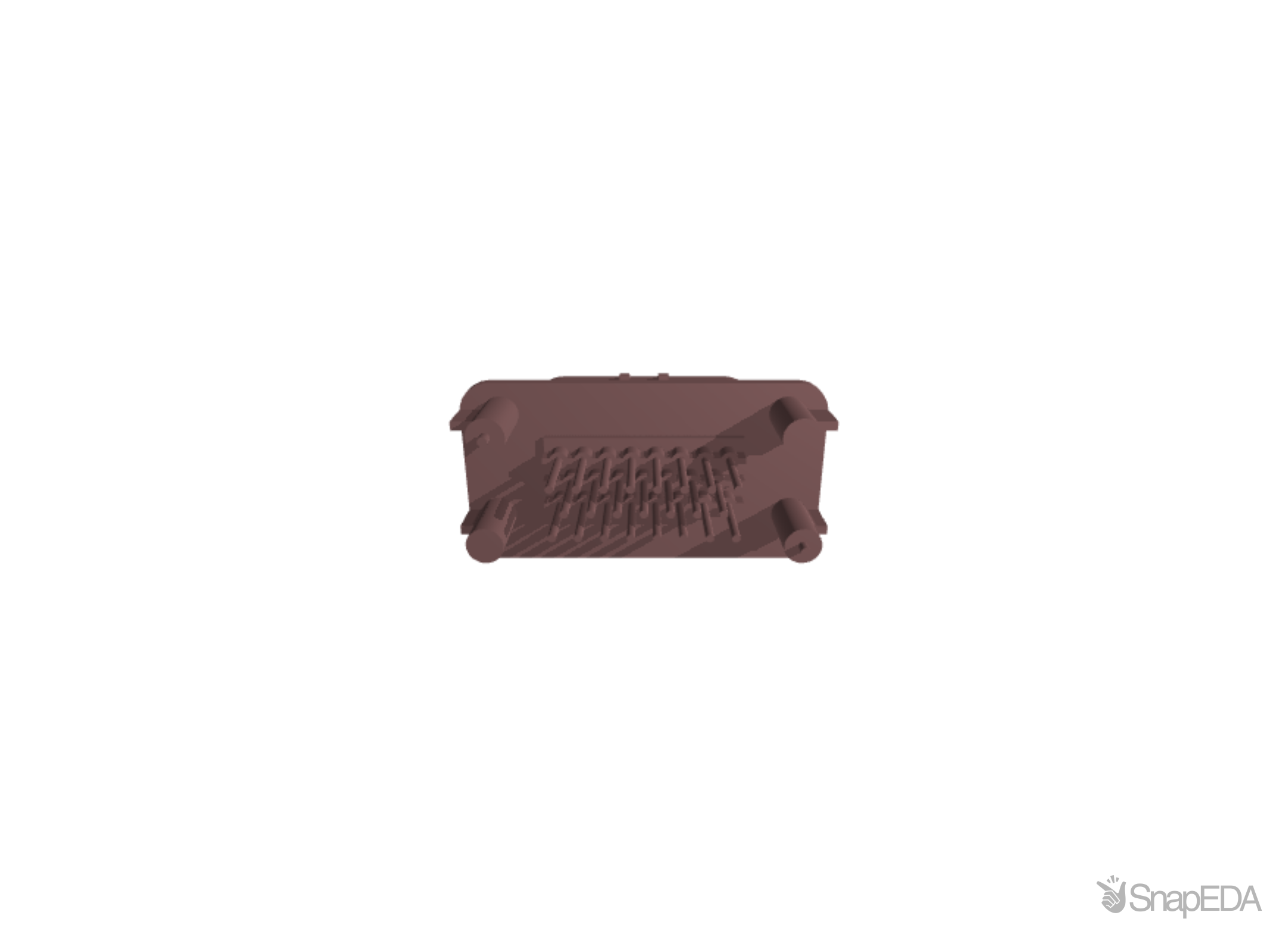

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-776200-5
| Part Name | 1-776200-5 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .157 |
| Circuit Application | Power & Signal |
| Width | 1.264 |
| Operating Voltage (V) | 250 |
| Number of Positions | 23 |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | Without |
| Tab Thickness | 1.3 |
| PCB Thickness (Recommended) | 1.57 |
| Operating Temperature (Max) | 105 |
| TE Internal Number | 1-776200-5 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Degree of Protection | IP6K9K |
| Number of Rows | 3 |
| RoHS | True |
| Locking Interface | With |
| Number of Signal Positions | 23 |
| Sealable | Yes |
| Number of Sections | 1 |
| Nominal Voltage Architecture (V) | 42 |
| Mounting Orientation | Vertical/180 |
| Operating Temperature Range | -40 to 125 |
| Shielded | No |
| Mounting Holes | With |
| Termination Method | Through Hole - Solder |
| Packaging Quantity | 220 |
| Length | 60.8 |
| Pin Diameter | .051 |
| Voltage Rating (Max) (V) | 250 |
| Tab Width | .051 |
| Color | Blue |
| Hybrid Header | No |
| PCB Mount Alignment | With |
| Profile Height from PCB | 34.25 |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Interface Plating | Gold (Au) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Plating | Gold |
| Mounting Type | Panel Mount |
| Series | AMPSEAL |
| Colour | Blue |
| Termination Method | Solder |
| Height | 32.1 (mm) |
| Housing Material | Glass Fibre Reinforced PBT |
| Width | 60.8 (mm) |
| Depth | 34.3 (mm) |
| Number Of Rows | 3 |
| Minimum Operating Temperature | -40 (°C) |
| Gender | Male |
| Number Of Contacts | 23 |
| Type | PCB Connector |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Brass |
