1-794071-0

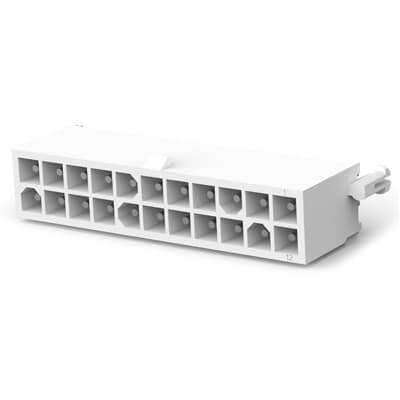

UNIVERSAL MATE-N-LOK;22P MINI UMNL HDR W/DH SN LF | TE Connectivity 1-794071-0
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-794071-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

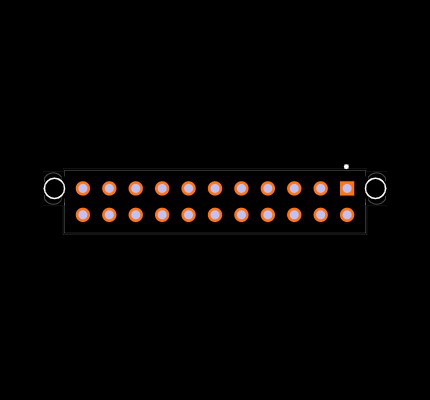

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-794071-0
| Part Name | 1-794071-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Chamfered Edges |
| Centerline (Pitch) | 4.14 |
| Circuit Application | Power |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon |
| Width | 9.83 |
| Contact Termination Area Plating Thickness | 150 |
| Operating Voltage (V) | 600 |
| For Use With | Plug Housing |
| UL Rating | Recognized |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | 3.69 |
| CSA File Number | LR7189 |
| Panel Mount Feature | Without |
| TE Internal Number | 1-794071-0 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Agency/Standard Number | E28476 |
| Housing Color | White |
| Number of Signal Positions | 0 |
| Product Type | Header |
| Multiple Contact Types | Without |
| Mating Retention | With |
| Length | 47.09 |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 200 |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 22 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| CSA Rating | Certified |
| VDE Tested | No |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Contact Retention | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| Mating Retention Type | Locking Tab |
| Height | 13.49 |
| Row-to-Row Spacing | .163 |
| Contact Current Rating (Max) (A) | 9.5 |
| Contact Mating Area Plating Thickness | 3.81 – 8.89 |
| Connector Mounting Type | Board Mount |
| Contact Type | Pin |
| Number of Power Positions | 22 |
| Wire Size | 100.5 – 2853 |
| Sealable | No |
