1-828213-9
19P MOD2 STIFT LEI
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-828213-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

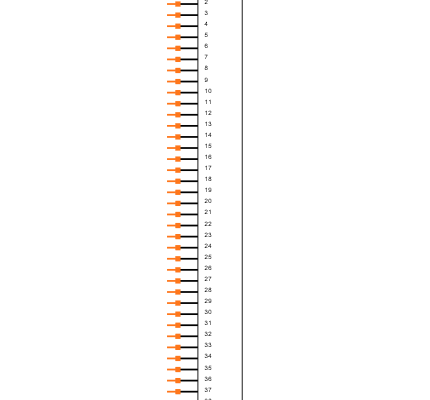

Symbol
No web preview
This Symbol is Available for

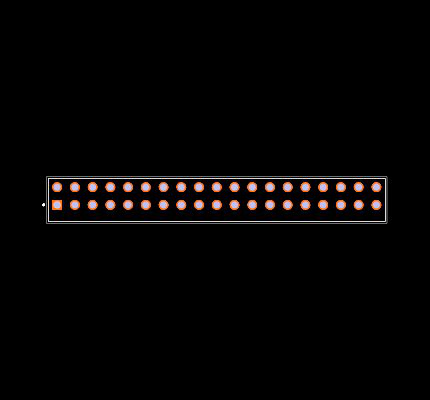

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-828213-9
| Part Name | 1-828213-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Contact Protection | Without |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Selectively Loaded | No |
| For Use With | Mates With Receptacles |
| High Speed Serial Data Connector | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Stabilizers | Without |
| Board Standoff | With |
| Mating Post Length | 6.7 |
| TE Internal Number | 1-828213-9 |
| PCB Mount Orientation | Vertical |
| Mating Connector Lock | Without |
| Row-to-Row Spacing | 2.54 |
| Number of Rows | 2 |
| Housing Color | Green |
| Header Type | Unshrouded |
| Contact Underplating Material | Nickel |
| Contact Base Material | CuSn |
| Contact Shape | Square |
| Connector Assembly Type | PCB Mount Header |
| PCB Mounting Style | Through Hole Solder |
| High Temperature Compatible | No |
| Connector Type | Connector Assembly |
| Keyed | No |
| Number of Positions | 38 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Pre-Tin |
| Housing Material | PBT GF |
| Strain Relief | Without |
| High Temperature Housing | No |
| Termination Post Length | .126 |
| Post Size | .025 |
| Termination End Plating Material | Tin |
| Panel Mount Feature | Without |
| Product Type | Connector |
| Gasket | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
