1-87194-2
13 MODI HDR SRRA .156CL
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-87194-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

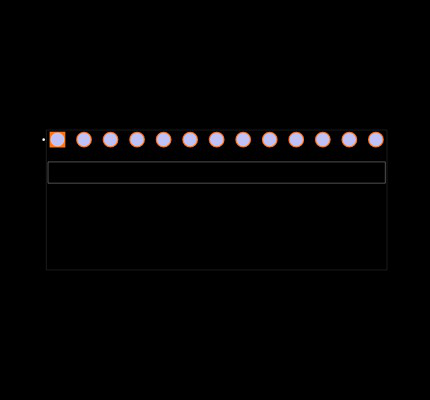

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-87194-2
| Part Name | 1-87194-2 |
| Manufacturer | TE Connectivity |
| Contact Resistance | 12 |
| Centerline (Pitch) | 3.96 |
| Contact Protection | Without |
| Dielectric Withstanding Voltage (V) | 1200 VAC |
| Housing Material | Thermoplastic |
| Selectively Loaded | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Stabilizers | Without |
| Board Standoff | Without |
| Mating Post Length | .5 |
| TE Internal Number | 1-87194-2 |
| PCB Mount Orientation | Right Angle |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Unshrouded |
| Strain Relief | Without |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Termination End Plating Thickness | 50 150 |
| Number of Keys | 4 |
| Connector Assembly Type | PCB Mount Header |
| Operating Temperature Range | -65 to 105 |
| Packaging Method | Carton |
| Connector Type | Connector Assembly |
| Packaging Quantity | 50 |
| Keyed | Yes |
| Number of Positions | 13 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin-Lead |
| Solder Tail Contact Plating Material Finish | Bright |
| RoHS | N |
| Approved Standards | CSA LR16455 |
| PCB Mounting Style | Through Hole |
| Contact Base Material | Brass |
| Termination Post Length | .275 |
| Post Size | .787 |
| UL Flammability Rating | UL 94V-0 |
| Termination End Plating Material | Tin-Lead over Nickel |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 5 |
| Contact Mating Area Plating Thickness | 50 150 |
| Product Type | Connector |
| Gasket | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-87194-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site |
No issues have been reported for the 1-87194-2
