1-87523-6

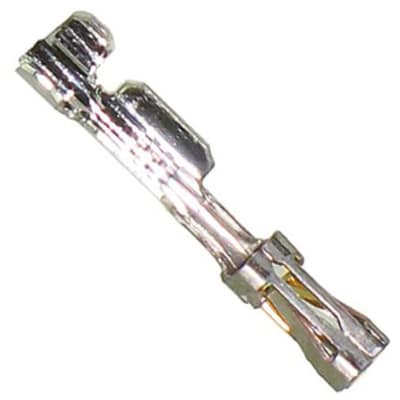

PCB Conn Contact Female Crimp, Gold, 24-20 AWG, AMPMODU Mod IV Series | TE Connectivity 1-87523-6
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-87523-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-87523-6
| Part Name | 1-87523-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Dielectric Withstanding Voltage (V) | 750 |
| Insulation Resistance | 5000 |
| Crimp Area Plating Thickness | 100 – 200 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Tin-Lead over Nickel |
| TE Internal Number | 1-87523-6 |
| Termination Method to Wire & Cable | Crimp |
| Termination Resistance | 12 |
| Product Type | Contact |
| Wire Insulation Support | With |
| Contact Transmits (Typical) | Signal (Data)/Power |
| Operating Temperature Range | -65 – 105 |
| Insulation Diameter | 1.75 |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Applied Pressure | Standard |
| Contact Mating Area Plating Material | Gold |
| RoHS | No |
| Approved Standards | UL E28476 |
| Contact Base Material | Copper-Tin-Phosphor Bronze |
| Contact Current Rating (Max) (A) | 3 |
| Contact Mating Area Plating Thickness | 15 |
| Contact Type | Socket |
| Wire/Cable Type | Discrete Wire |
| Wire Size | .2 – .6 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-87523-6 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
41,619
|
|
Visit Site | |
|
★ Featured
|
38,261
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
40,000 x $0.23
|
Visit Site | |
| Farnell UK |
30,698
|
|
Visit Site | |
| Heilind Americas |
16,776
|
|
Visit Site | |
| Newark |
32,770
|
|
Visit Site | |
| Onlinecomponents |
36,303
|
|
Visit Site | |
| Powell Electronics |
4,999
|
|
Visit Site | |
| Sager |
|
40,000 x $0.29
|
Visit Site | |
| TE Connectivity |
29,799
|
|
Visit Site | |
| TME |
37,490
|
|
Visit Site | |
| TTI Europe |
38,000
|
1,000 x $0.21
|
Visit Site | |
| Verical |
37,490
|
|
Visit Site | |
| element14 Singapore |
30,698
|
|
Visit Site |
