1-87965-1
24 MODII HORZ DR CE 100CL/145
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-87965-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

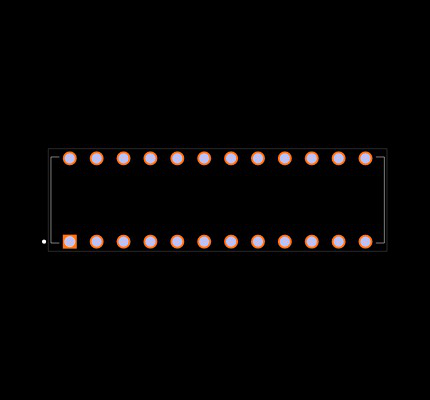

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-87965-1
| Part Name | 1-87965-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .093 |
| Termination Post & Tail Length | .145 |
| TE Internal Number | 1-87965-1 |
| PCB Mount Orientation | Right Angle |
| Contact Protection Type | Closed Entry Housing |
| Connector Height | .238 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 50 |
| Sealable | No |
| Housing Color | Natural |
| Mating Entry Location | Side |
| High Temperature Compatible | No |
| Packaging Method | Tube |
| Packaging Quantity | 80 |
| Contact Configuration | Short Point |
| Solder Process Feature | Board Standoff |
| Number of Positions | 24 |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | True |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Contact Base Material | Phosphor Bronze |
| Contact Mating Area Plating Material Thickness | 50 |
| Row-to-Row Spacing | .1 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| Connector Profile | Standard |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-87965-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
80 x $88.01
|
Visit Site |
No issues have been reported for the 1-87965-1
