1-917807-2

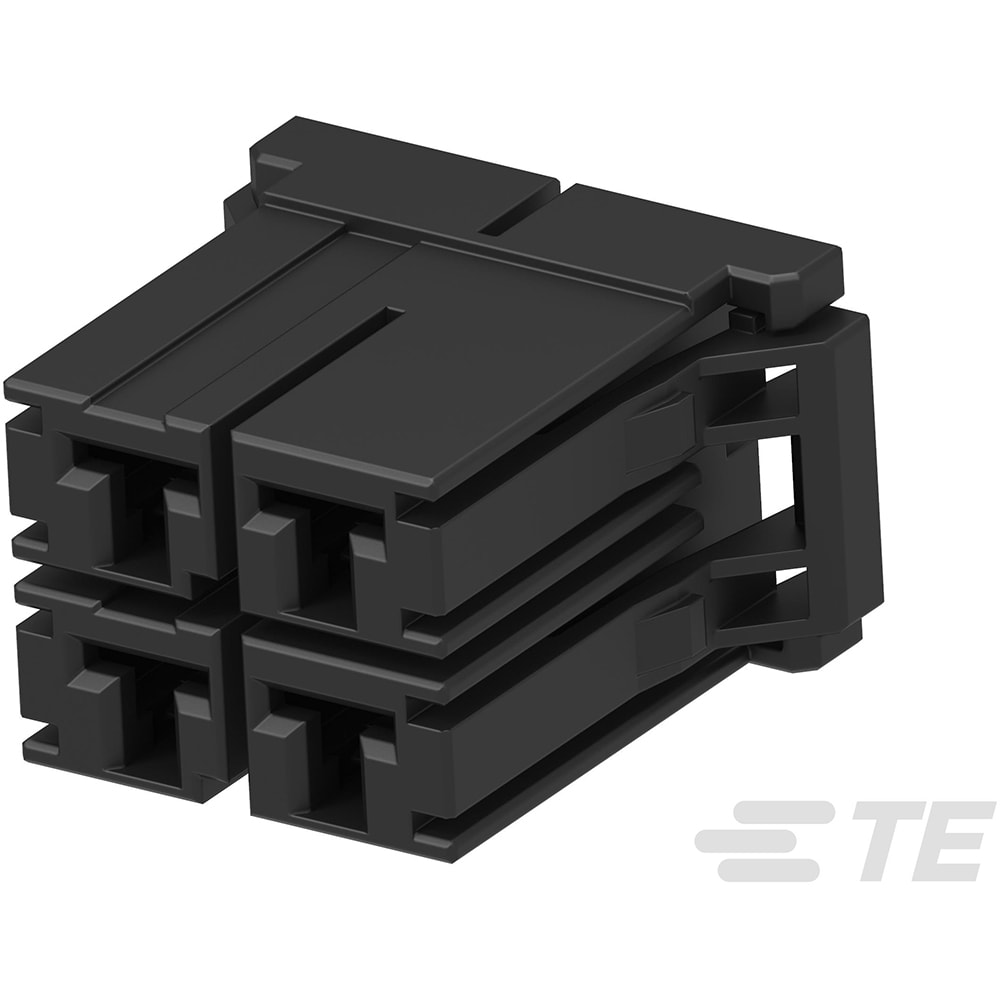

Dynamic 5000 Housing Recept. 4 Pos. D-5200M Key (x x) 2 Row 630 V | TE Connectivity 1-917807-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-917807-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

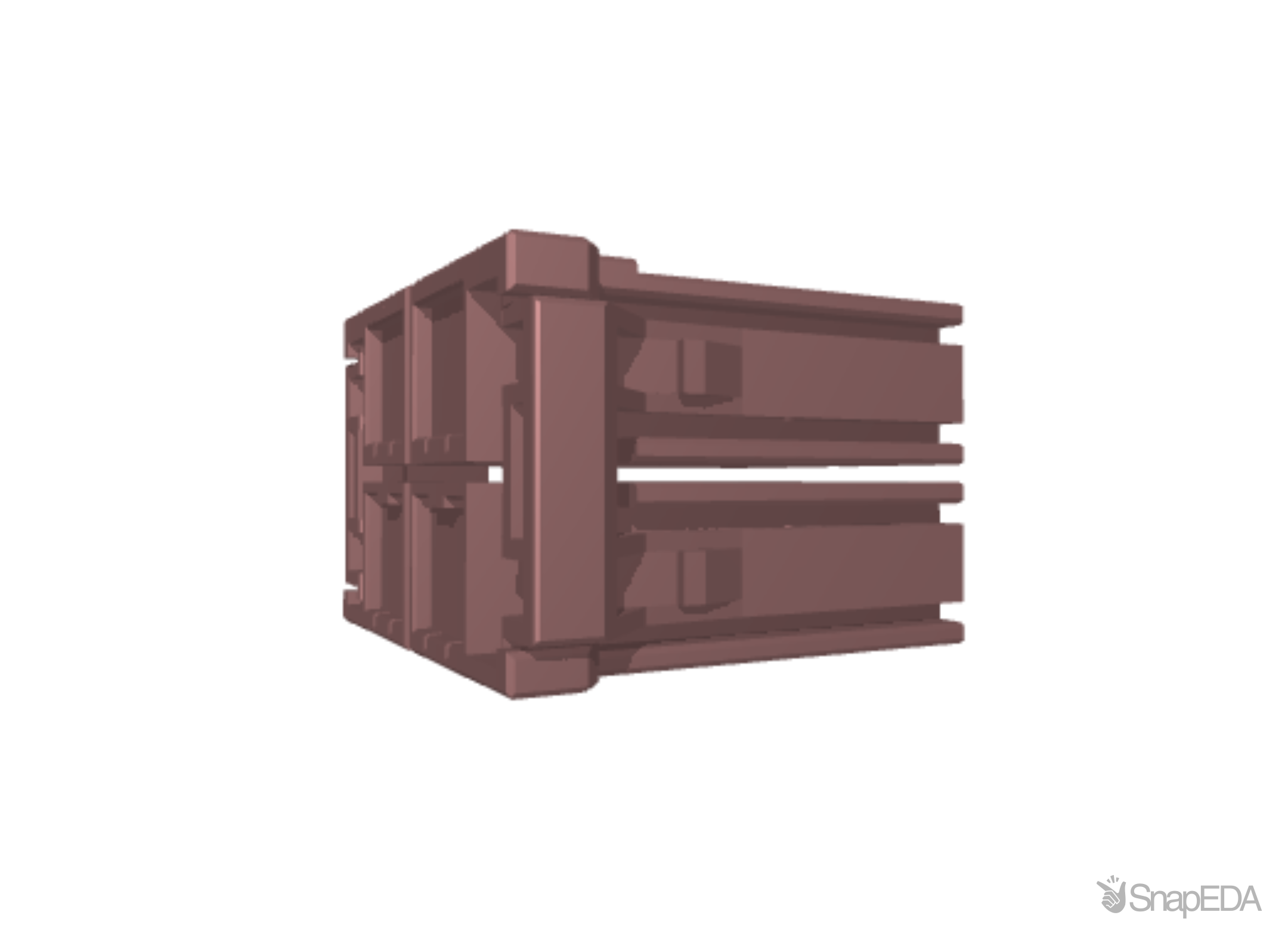

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-917807-2
| Part Name | 1-917807-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .399 |
| Circuit Application | Power |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester GF |
| Width | 19.96 |
| Height | 29 |
| Operating Voltage (V) | 630 |
| For Use With | Plug Housing & Header |
| Connector Style | Receptacle |
| UL Rating | Recognized |
| Connector & Contact Terminates To | Wire & Cable |
| Panel Mount Feature | Without |
| VDE Tested | No |
| TE Internal Number | 1-917807-2 |
| Number of Positions | 4 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Housing Color | Black |
| Sealable | No |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| UL File Number | E28476 |
| Operating Temperature Range | -67 – 221 |
| CSA Certified | Yes |
| Packaging Method | Bag |
| Connector Type | Housing |
| Packaging Quantity | 150 |
| Contact Layout | Matrix |
| Halogen Free | Yes |
| Shunts/Shorting Bars | Without |
| CSA Rating | Certified |
| RoHS | True |
| Agency/Standard | CSA |
| Panel Mount | No |
| Product Type | Connector |
| Length | 33.36 |
| Multiple Contact Types | Without |
| Row-to-Row Spacing | 10.16 |
| CSA File Number | LR7189 |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Number of Cavities | 4 |
| Preloaded | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
