1-968968-1

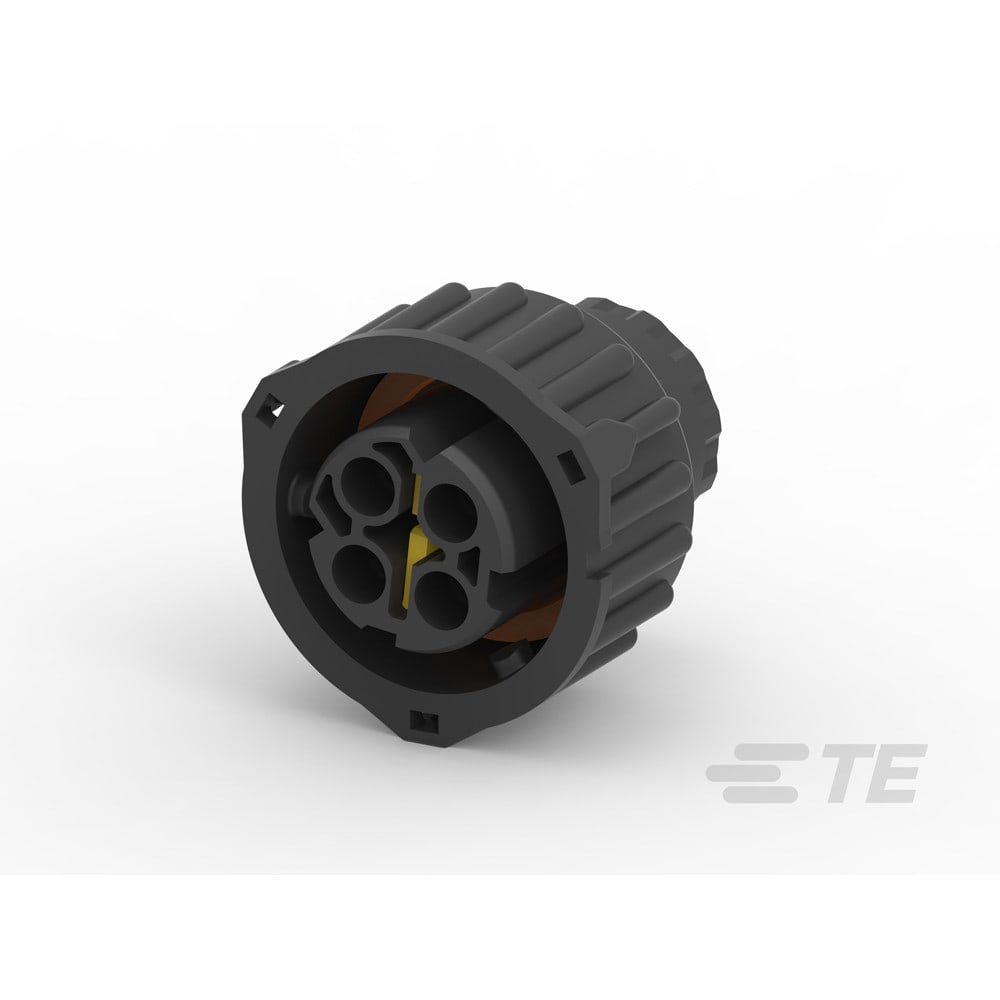

Circular Connector, 2 5MM BU-GEH ASSY4P | TE Connectivity 1-968968-1
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-968968-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-968968-1
| Part Name | 1-968968-1 |
| Manufacturer | TE Connectivity / AMP |
| Category | Connectors |
| Centerline (Pitch) | .276 |
| Mounting Feature | Without |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 4 |
| Hybrid Connector | No |
| TE Internal Number | 1-968968-1 |
| Connector System | Wire-to-Wire |
| Strain Relief | No |
| Body Material | Other |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | No |
| Operating Temperature Range | -40 – 248 |
| Degree of Protection | IP69K |
| Packaging Method | Box |
| Packaging Quantity | 500 |
| Length | 31 |
| Cable Exit Angle | 180° |
| Serviceable | No |
| RoHS | True |
| Sealable | Yes |
| Color | Black |
| UL Flammability Rating | UL 94-HB |
| Height | 32.9 |
| Row-to-Row Spacing | 7 |
| Primary Locking Feature | On the Terminal |
| Connector Code | 1 |
| Mating Pin Diameter | 2.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 32.8 (mm) |
| Current Rating (A) | 40 (A) |
| Contact Plating | Tin |
| Ip Rating | IPX7, IPX9K |
| Gender | Female |
| Colour | Black |
| Width | 31 (mm) |
| Number Of Rows | 2 |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Contacts | 4 |
| Type | Socket Housing |
| Maximum Operating Temperature | +120 (°C) |
