1.5KE100A
1.5KE Series 100V 1500W Uni-Directional Axial Leaded DO-201 TVS Diode
Availability: Out of Stock
Package Type: DO-201
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1.5KE100A by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

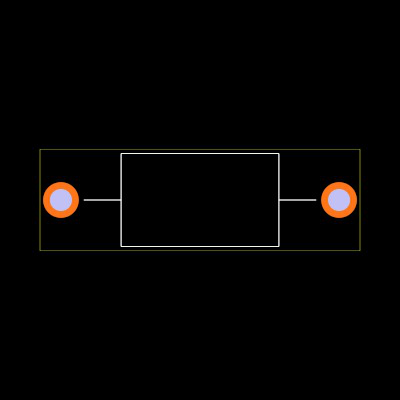

Footprint
No web preview
This Footprint is Available for

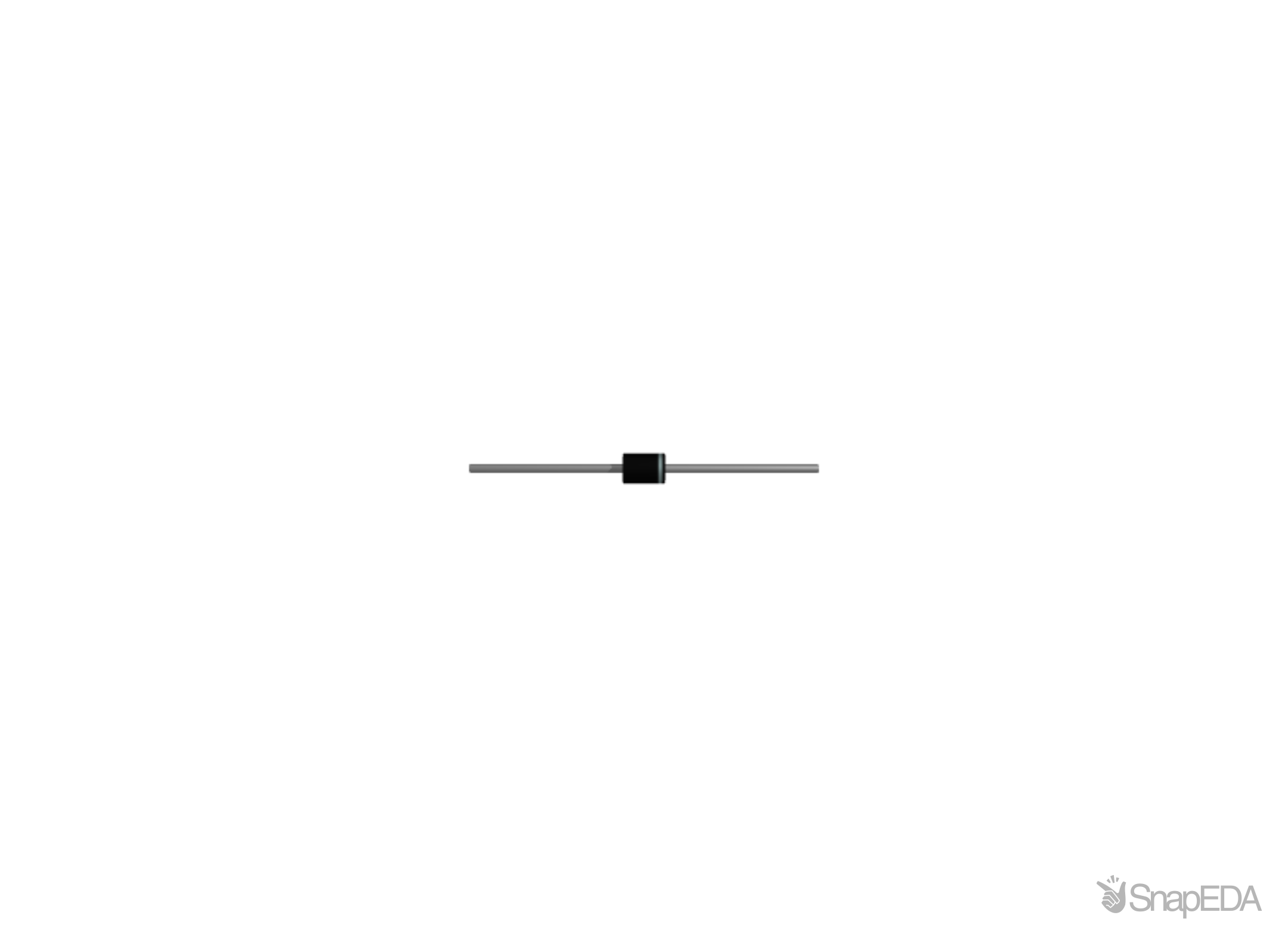

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1.5KE100A
| Part Name | 1.5KE100A |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 56 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 85.5 (V) |
| Dimensions | 9.5 x 5.3 x 5.3 (mm) |
| Minimum Breakdown Voltage (V) | 95 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +175 °C |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Height | 5.3 (mm) |
| Width | 5.3 (mm) |
| Length | 9.5 (mm) |
| Package Type | DO-201 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Mounting Type | Through Hole |
| Maximum Clamping Voltage (V) | 178 (V) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500 (W) |
| Test Current (A) | 1 (mA) |
No issues have been reported for the 1.5KE100A
