1.5SMC440CA

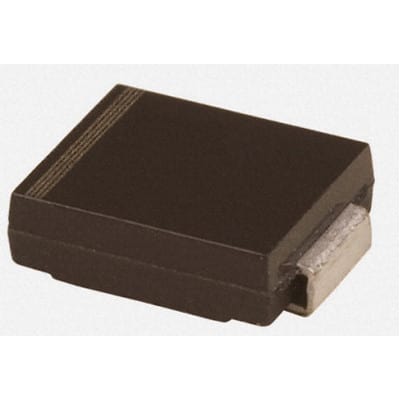

1.5SMC440CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB | Littelfuse 1.5SMC440CA
Availability: In Stock
Package Type: DO-214
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1.5SMC440CA by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

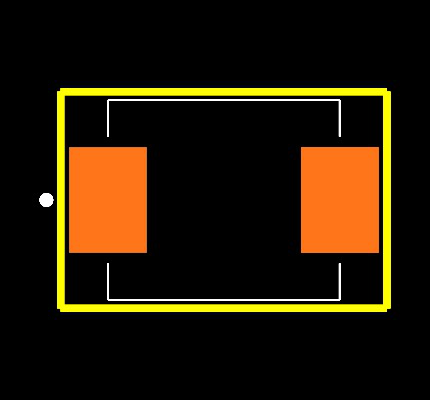

Footprint
No web preview
This Footprint is Available for

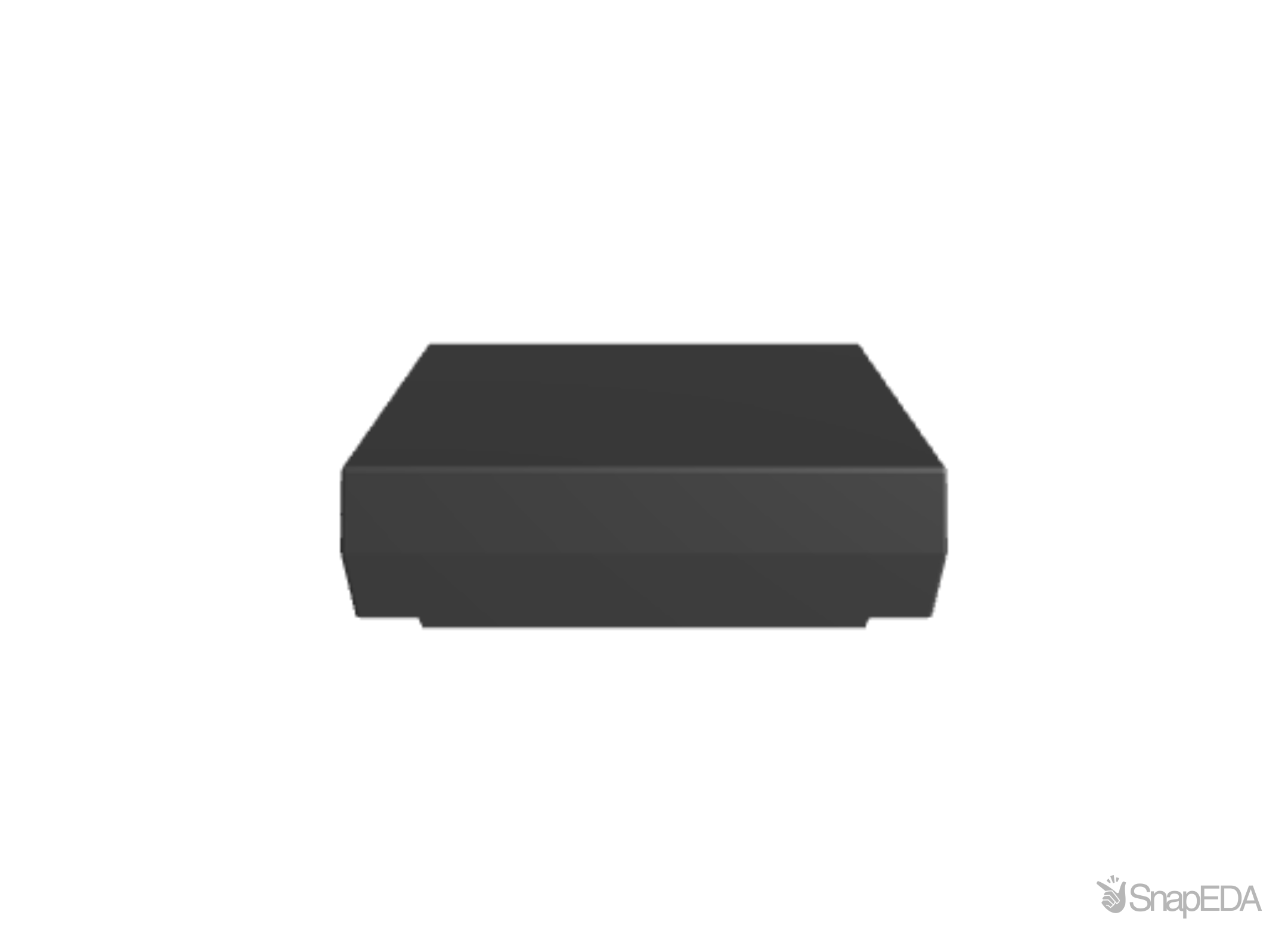

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1.5SMC440CA
| Part Name | 1.5SMC440CA |
| Manufacturer | Littelfuse |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 376 (V) |
| Maximum Peak Pulse Current (A) | 2.5 (A) |
| Dimensions | 7.11 x 6.22 x 2.417 (mm) |
| Minimum Breakdown Voltage (V) | 418 (V) |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Maximum Clamping Voltage (V) | 602 (V) |
| Width | 6.22 (mm) |
| Length | 7.11 (mm) |
| Package Type | DO-214AB (SMC) |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Mounting Type | Surface Mount |
| Height | 2.417 (mm) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500 (W) |
| Test Current (A) | 1 (mA) |
