10067847-001RLF

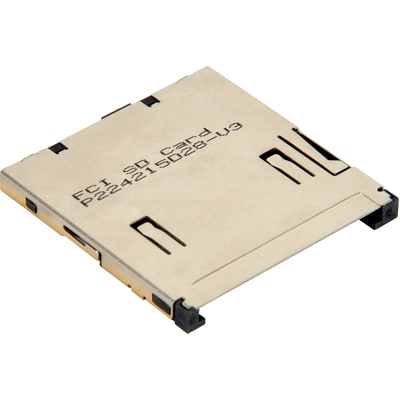

Conn Data SD (SanDisk Memory) Card Reader Push - Push Type | Amphenol FCI (Amphenol CS) 10067847-001RLF
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 10067847-001RLF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 10067847-001RLF
| Part Name | 10067847-001RLF |
| Manufacturer | Amphenol ICC |
| Category | Connectors |
| Product Link | https://www.amphenol-cs.com/product/10067847001RLF.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 28.5 x 29 x 2.8 (mm) |
| Mounting Type | Surface Mount |
| Card Type | SD Card |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Depth | 2.8 (mm) |
| Housing Material | Thermoplastic |
| Width | 29.0 (mm) |
| Length | 28.5 (mm) |
| Number Of Rows | 1 |
| Minimum Operating Temperature | -40 (°C) |
| Pitch | 1.7 mm, 2.5 mm, 3.325 (mm) |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 10 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Copper Alloy |
No issues have been reported for the 10067847-001RLF
If you experienced any issues with the symbol or footprint, please report it.
