10090769-P154ALF

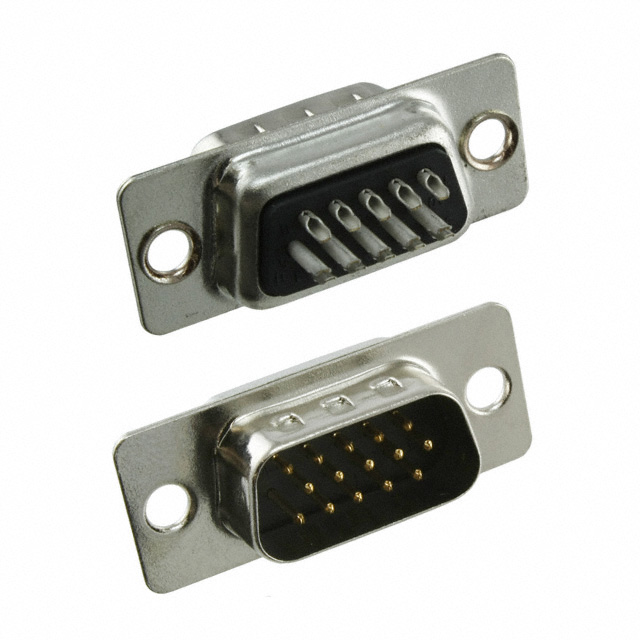

Conn D-Sub Plug Straight Solder HighDensity 15-Cnts MetalFace | Amphenol FCI (Amphenol CS) 10090769-P154ALF
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 10090769-P154ALF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 10090769-P154ALF
| Part Name | 10090769-P154ALF |
| Manufacturer | Amphenol ICC |
| Category | Connectors |
| Product Link | https://www.amphenol-cs.com/d-subminiature-high-density-10090769p154alf.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 2.5 (A) |
| Dimensions | 30.81 x 4.8 x 12.55 (mm) |
| Mounting Type | Panel Mount |
| Voltage Rating (V) | 250.0 V |
| Gender | Male |
| Body Orientation | Straight |
| Pitch | 2.29 (mm) |
| Length | 30.81 (mm) |
| D Connector Type | High Density D-Sub |
| Housing Material | Steel |
| Width | 4.8 (mm) |
| Depth | 12.55 (mm) |
| D-Sub Shell Size | E |
| Minimum Operating Temperature | -55.0 (°C) |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 15 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Copper Alloy |
