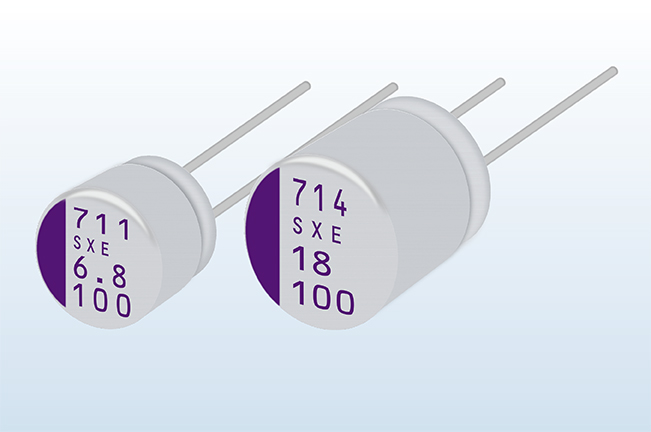

100SXE39M
Series/Type: SXE, Body Type: Radial lead type, Rated voltage (V): 100, Capacitance (µF): 39, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to 125, Endurance (h): 1000, Endurance@Temp.: 1000@125°C, Rated Ripple Current (mArms): 3000, Rated Ripple Current (temp.) (°C): T≦105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 30, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 195, Dissipation Factor [Max.]: 0.12, Diameter (mm): 10, Body Length (mm): 13, Lead (terminal) Pitch (mm): 5, Size Code: F13
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 100SXE39M by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

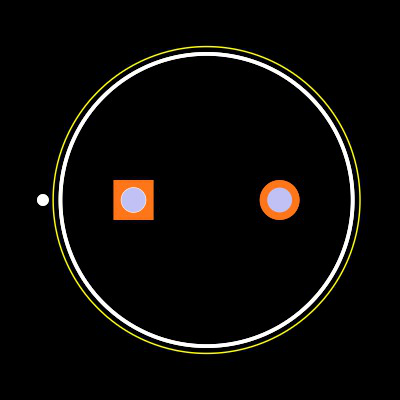

Footprint
No web preview
This Footprint is Available for

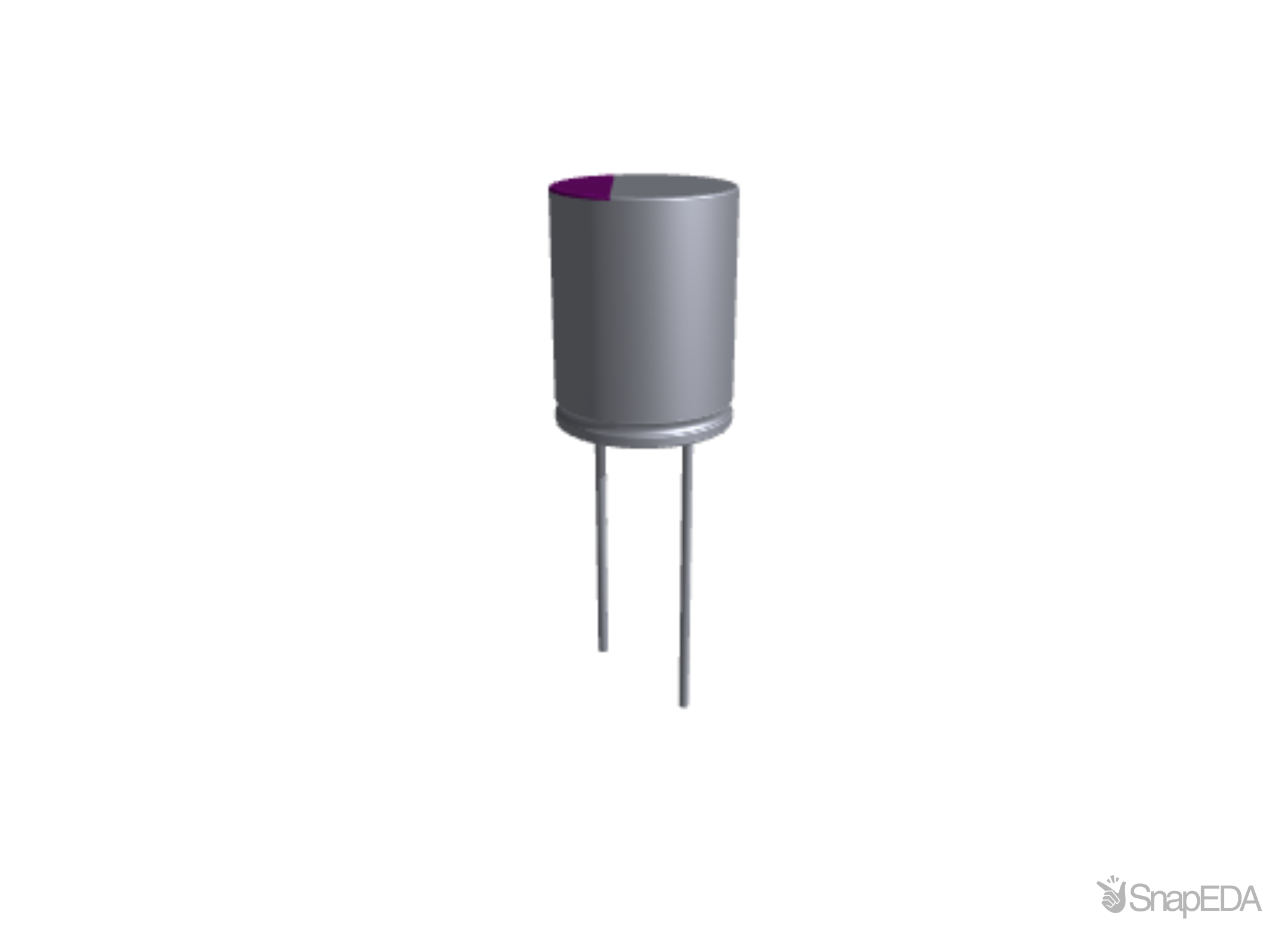

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 100SXE39M
| Part Name | 100SXE39M |
| Manufacturer | Panasonic |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
