10132328-10011LF

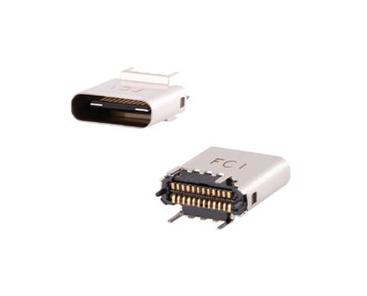

USB 3.1 GEN 2 Type C Connector, Input Output Connector, VERTICAL RECEPTACLE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 10132328-10011LF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

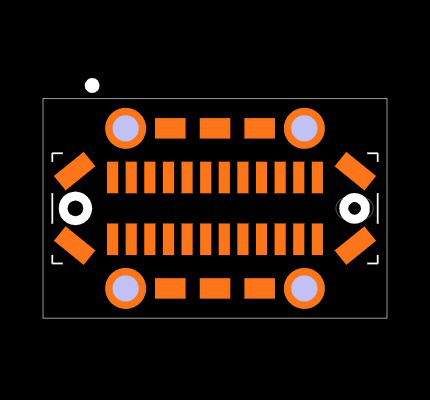

Footprint
No web preview
This Footprint is Available for

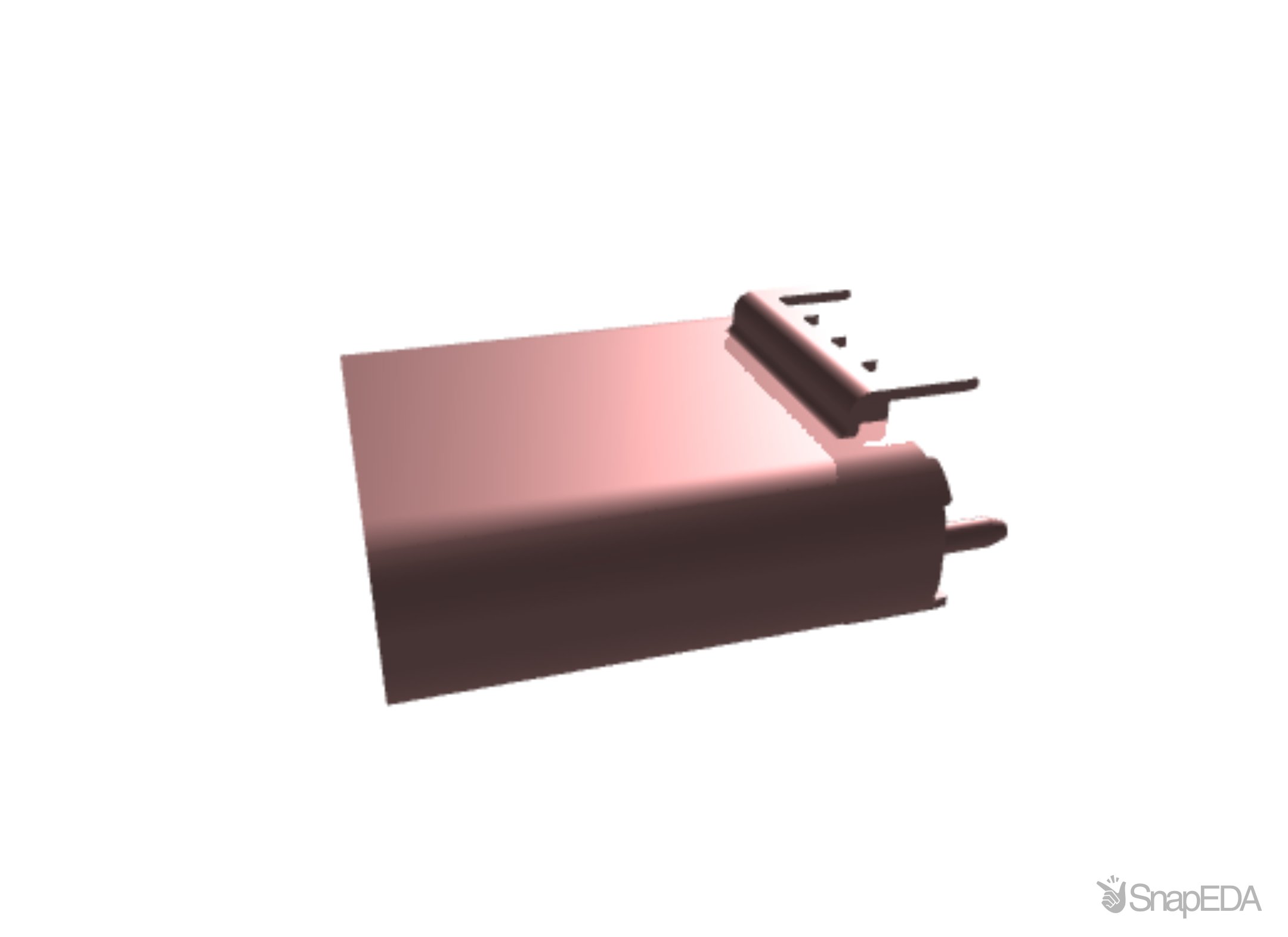

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 10132328-10011LF
| Part Name | 10132328-10011LF |
| Manufacturer | Amphenol ICC |
| RoHS | True |
| Product Link | https://www.amphenol-cs.com/product/1013232810011LF.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| eBrochure | eBrochure |
| Usb Version | 3.1 |
| Mounting Type | Through Hole |
| Gender | Female |
| Usb Type | C |
| Number Of Ports | 1 |
| Minimum Operating Temperature | -55.0 (°C) |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +85 (°C) |
| Body Orientation | Straight |
| Series Number | 10132328 |
