1016526
SnapVerified

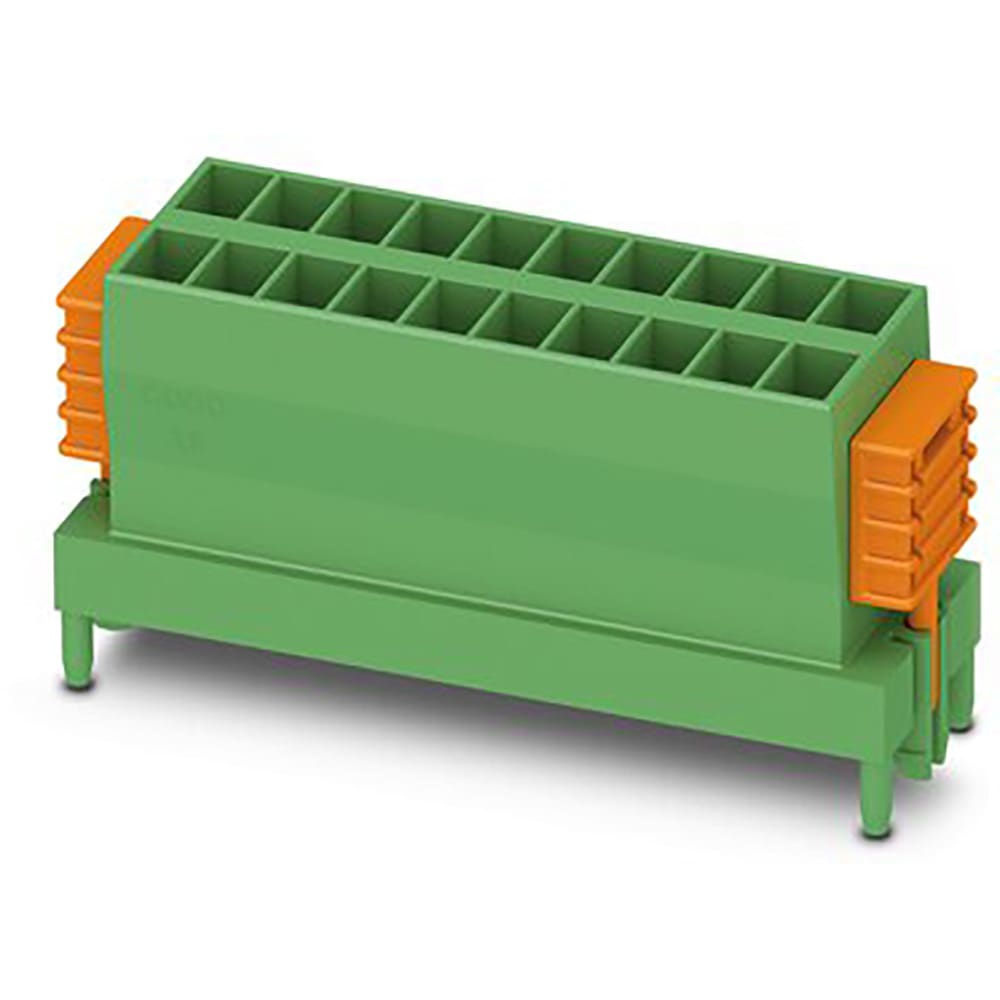

Phoenix Contact 1016526 CDDC 1,5/16-PV-3,5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1016526 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

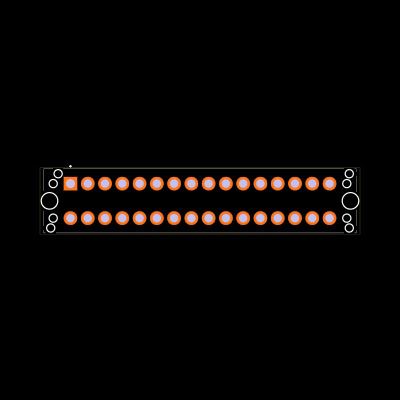

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1016526
| Part Name | 1016526 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 8 |
| Width | 63.3 |
| GTIN | 4055626498812 |
| Min. Line Cross Section, Flexible | 0.14 |
| Product Description | Direct connector |
| Certificate/approval | cULus Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4055626498812 |
| Internal Article Number | 1016526 |
| Number Of The Executions Of The Housing Parts | 0 |
| Max. Line Cross Section, Flexible | 1.5 |
| Depth | 13 |
| Manufacturer Product Designation | Direct connector |
| RoHS | True |
| Assembly Type | SKEDD - Direct plug-in technology |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1016526 |
| Pole Number | 16 |
| Net Weight | 0.0069 |
| Height | 19.6 |
| Application Standards | IEC 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1016526 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
50 x $4.62
|
Visit Site | |
| Farnell UK |
100
|
|
Visit Site | |
| Sager |
|
|
Visit Site |
No issues have been reported for the 1016526
If you experienced any issues with the symbol or footprint, please report it.
