102107-2

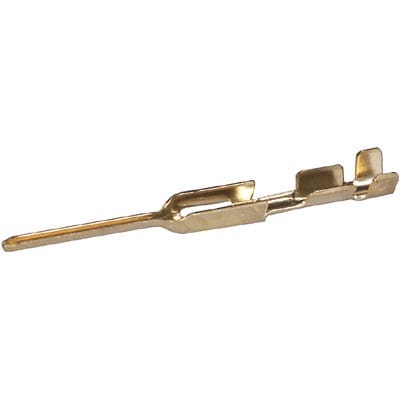

No-Strip Receptacle Housing, 26-22 AWG Crimp 250 3 A, AMPMODU Mod IV Series | TE Connectivity 102107-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 102107-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 102107-2
| Part Name | 102107-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Dielectric Withstanding Voltage (V) | 750 |
| Insulation Resistance | 5000 |
| Wire/Cable Type | Discrete Wire |
| Operating Voltage (V) | 250 |
| For Use With | Receptacle Contact |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Gold Flash |
| TE Internal Number | 102107-2 |
| Termination Method to Wire & Cable | Crimp |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Wire Insulation Support | With |
| Operating Temperature Range | -65 – 105 |
| Insulation Diameter | .061 |
| Termination Resistance | 12 |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Applied Pressure | Standard |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| 端子の下地めっきの材料 | Nickel |
| Contact Current Rating (Max) (A) | 3 |
| Contact Mating Area Plating Thickness | 30 |
| Product Type | Contact |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Wire Size | 26 – 22 |
