102154-1
Header, Conn,Interconnect System,PCB Plug,10 Cont,Solder,AMP-LATCH Series,Black | TE Connectivity 102154-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 102154-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

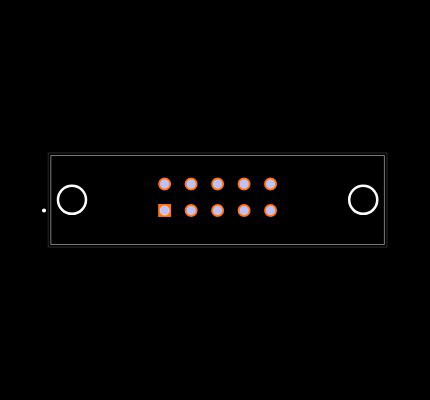

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 102154-1
| Part Name | 102154-1 |
| Manufacturer | TE Connectivity |
| Board-to-Board | |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | Standard |
| Circuit Application | Signal |
| Housing Style | 4-Sided |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | 2.54 |
| Contact Termination Area Plating Thickness | 100 |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Operating Voltage (V) | 250 |
| Connector Style | Receptacle |
| Ejection Latches | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Screw Mount |
| Contact Design | Solder Dip |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Board Standoff | Without |
| TE Internal Number | 102154-1 |
| Polarization | With |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Universal Ejection Pin Headers |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Profile | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -65 to 105 |
| Packaging Method | Tray |
| Connector Type | Header |
| Packaging Quantity | 90 |
| Contact Termination Area Plating Material | Gold Flash over Palladium Nickel |
| Number of Positions | 10 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Shrouded End Dimension | 3.81 |
| Contact Transmits (Typical) | Signal (Data) |
| RoHS | N |
| Mating Retention | Without |
| Termination Post Length | 2.79 |
| PCB Mount Alignment | With |
| Post Size | .025 |
| UL Flammability Rating | UL 94V-0 |
| Height | .55 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 30 |
| Contact Type | Pin |
| Insulation Resistance | 5000 |
| Mating Connector Lock | Without |
| Daisy Chain | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 102154-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,162
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
1,097
|
|
Visit Site | |
| Farnell UK |
990
|
|
Visit Site | |
| Heilind Americas |
1,167
|
|
Visit Site | |
| Newark |
1,160
|
|
Visit Site | |
| Powell Electronics |
724
|
|
Visit Site | |
| RS UK |
|
1 x $1.24
|
Visit Site | |
| Sager |
|
1,170 x $1.05
|
Visit Site | |
| TME |
1,080
|
|
Visit Site |
No issues have been reported for the 102154-1
