10240-55G3PC

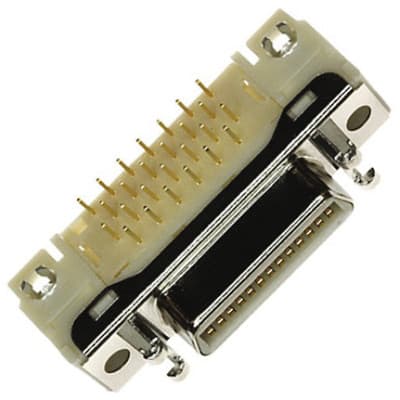

Boardmount ThroughHole Right Angle Receptacle Shielded | 3M 10240-55G3PC
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 10240-55G3PC by 3M and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

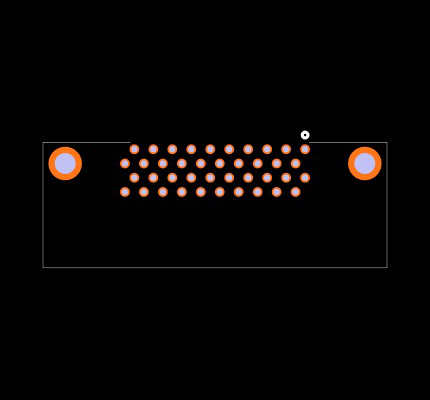

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 10240-55G3PC
| Part Name | 10240-55G3PC |
| Manufacturer | 3M |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | MDR 102 |
| Current Rating (A) | 1 (A) |
| Dimensions | 46.1 x 16.7 x 9.4 (mm) |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Length | 46.1 (mm) |
| Housing Material | PCT |
| Width | 16.7 (mm) |
| Depth | 9.4 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Pitch | 1.27 (mm) |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 40 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Copper Alloy |
Inventory for the 10240-55G3PC by 3M from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
241
|
|
Visit Site | |
|
★ Featured
|
365
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| TTI Americas |
100
|
100 x $5.85
|
Visit Site |
No issues have been reported for the 10240-55G3PC
