103264-1
Connector Header Through Hole 72 position 0.100" (2.54mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 103264-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

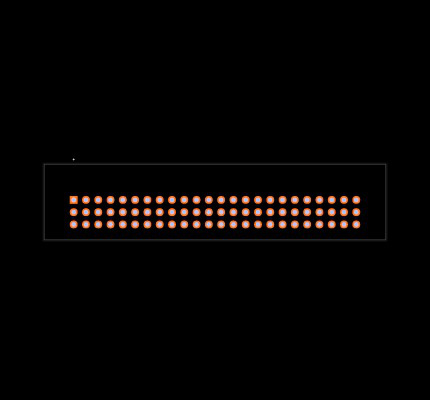

Footprint
No web preview
This Footprint is Available for

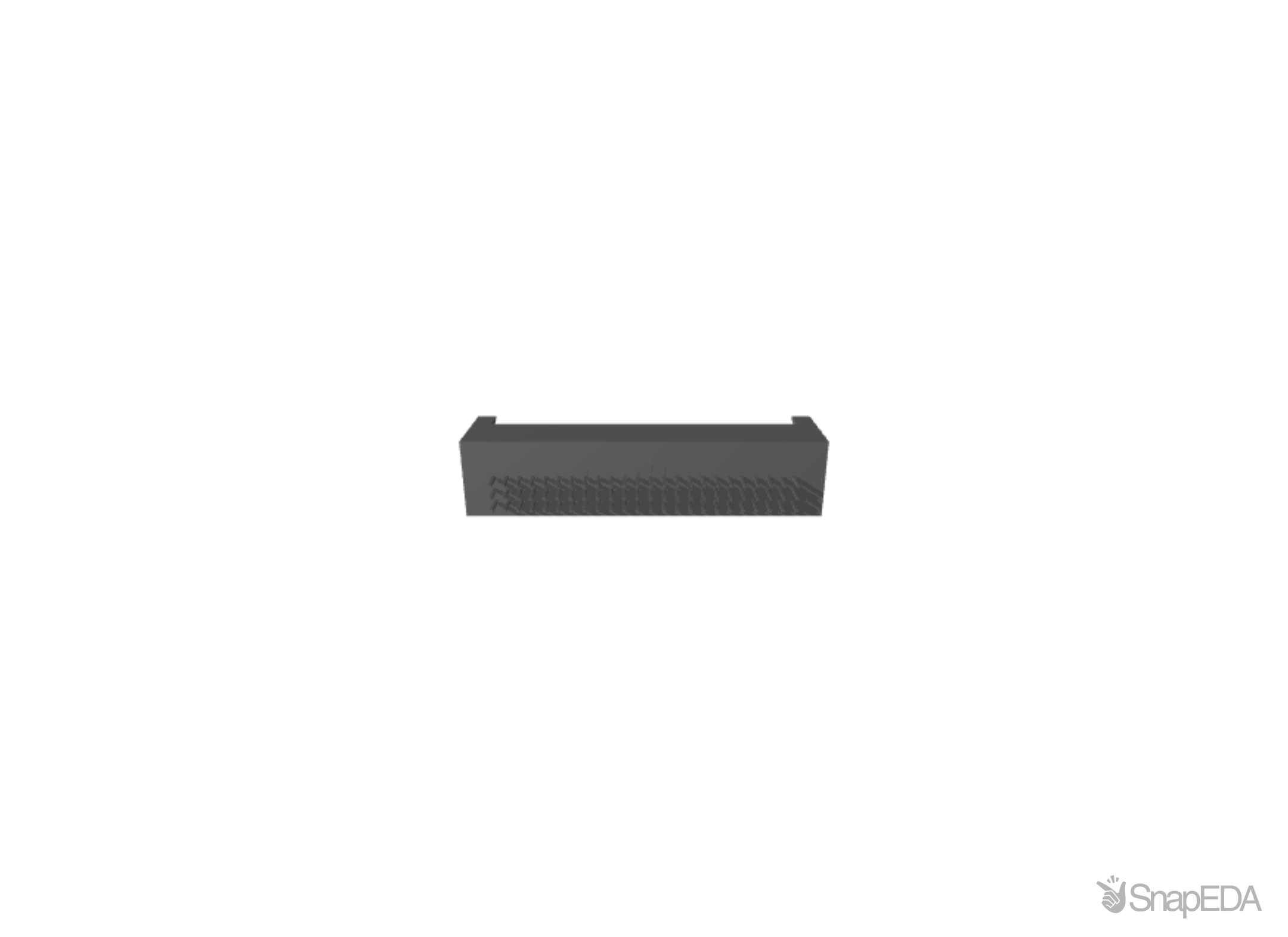

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 103264-1
| Part Name | 103264-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Guide Pins |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Housing Material | Nylon - GF |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .055 |
| Termination Post & Tail Length | 4.57 |
| Contact Current Rating (Max) (A) | 2 |
| Mating Post Length | .32 |
| TE Internal Number | 103264-1 |
| PCB Mount Orientation | Vertical |
| PCB Mount Alignment | Without |
| Connector Height | 16.51 |
| Number of Rows | 3 |
| PCB Contact Termination Area Plating Material Thickness | 100 – 200 |
| Header Type | Shrouded |
| Termination Resistance | 12 |
| Contact Base Material | Copper Alloy |
| Contact Shape | Square |
| Housing Color | Black |
| Dielectric Withstanding Voltage (Max) (V) | 750 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Assembly Process Feature | None |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Tube |
| Packaging Quantity | 21 |
| Contact Layout | Inline |
| Number of Positions | 72 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | No |
| Approved Standards | UL E28476 |
| Mating Retention | Without |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .762 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Header |
| PCB Contact Termination Area Plating Material Finish | Bright |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
