103310-7
Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 103310-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

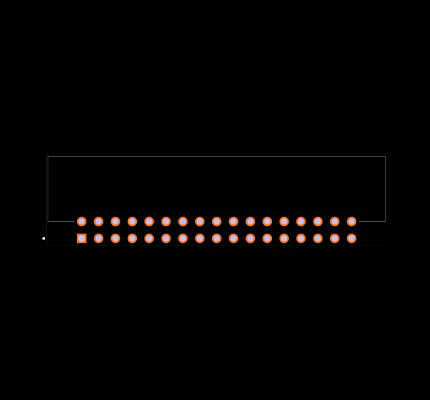

Footprint
No web preview
This Footprint is Available for

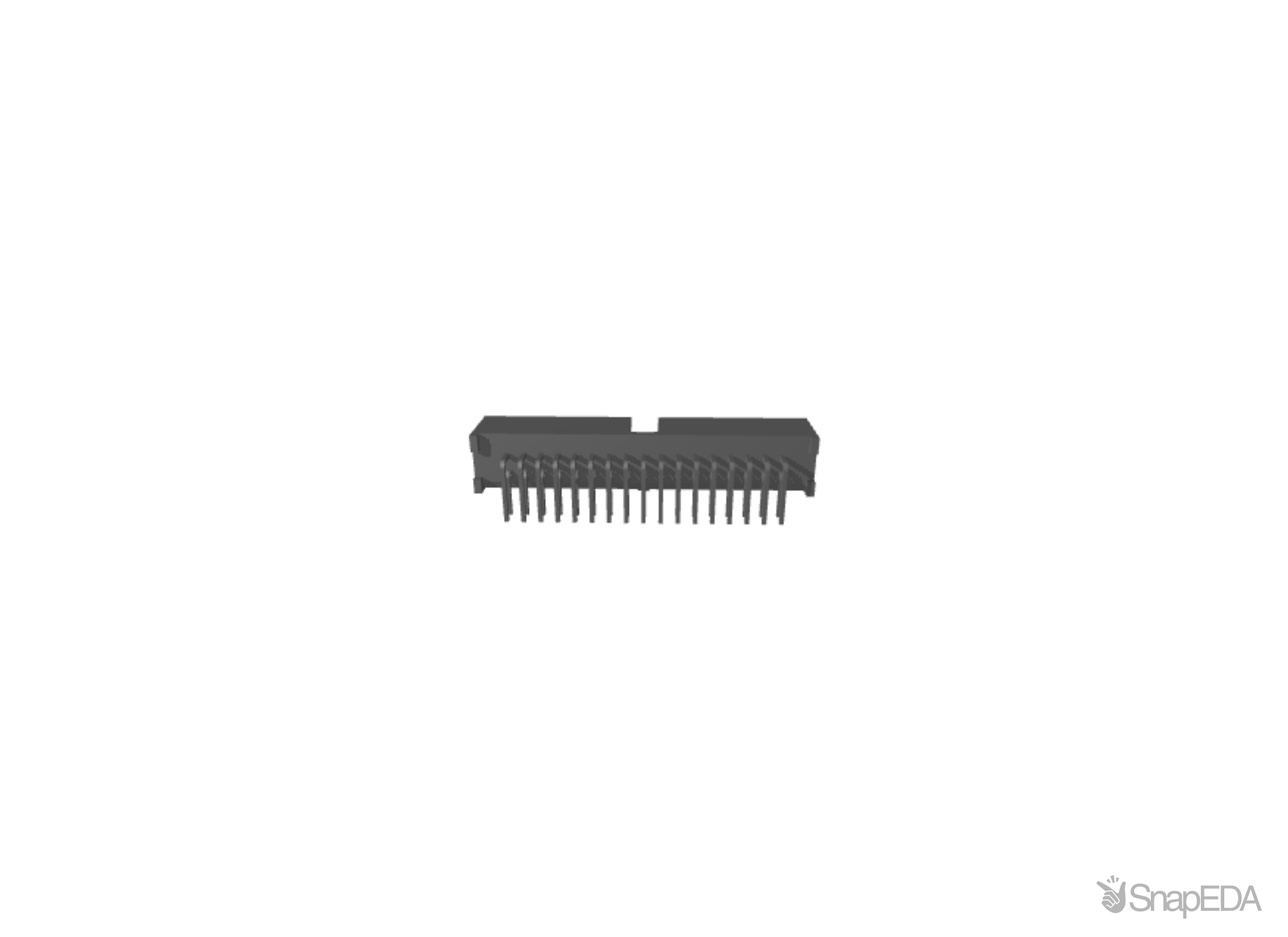

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 103310-7
| Part Name | 103310-7 |
| Manufacturer | TE Connectivity |
| Board-to-Board | |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | Standard |
| Circuit Application | Signal |
| Housing Style | 4-Sided |
| Housing Material | Thermoplastic |
| Insulation Resistance | 5000 |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Connector Style | Receptacle |
| Ejection Latches | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Low |
| PCB Mount Alignment | With |
| Panel Mount Feature | Without |
| Board Standoff | Without |
| Operating Temperature Range | -65 to 105 |
| TE Internal Number | 103310-7 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Pin Header |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Contact Design | Solder Dip |
| Mating Retention | Without |
| PCB Mount Retention | Without |
| Packaging Method | Tube |
| Connector Type | Header |
| Packaging Quantity | 50 |
| Contact Termination Area Plating Material | Gold Flash over Palladium Nickel |
| Number of Positions | 34 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Shrouded End Dimension | 3.81 |
| Contact Transmits (Typical) | Signal (Data) |
| RoHS | N |
| Polarization | With |
| Contact Base Material | Copper Alloy |
| Termination Post Length | .135 |
| Post Size | .025 |
| Length | 50.8 |
| Height | 9.77 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 15 |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 2.54 |
| Mating Connector Lock | Without |
| Daisy Chain | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
