103639-5
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Automotive Tube
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 103639-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

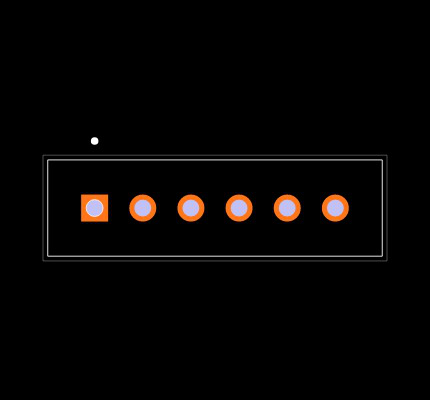

Footprint
No web preview
This Footprint is Available for

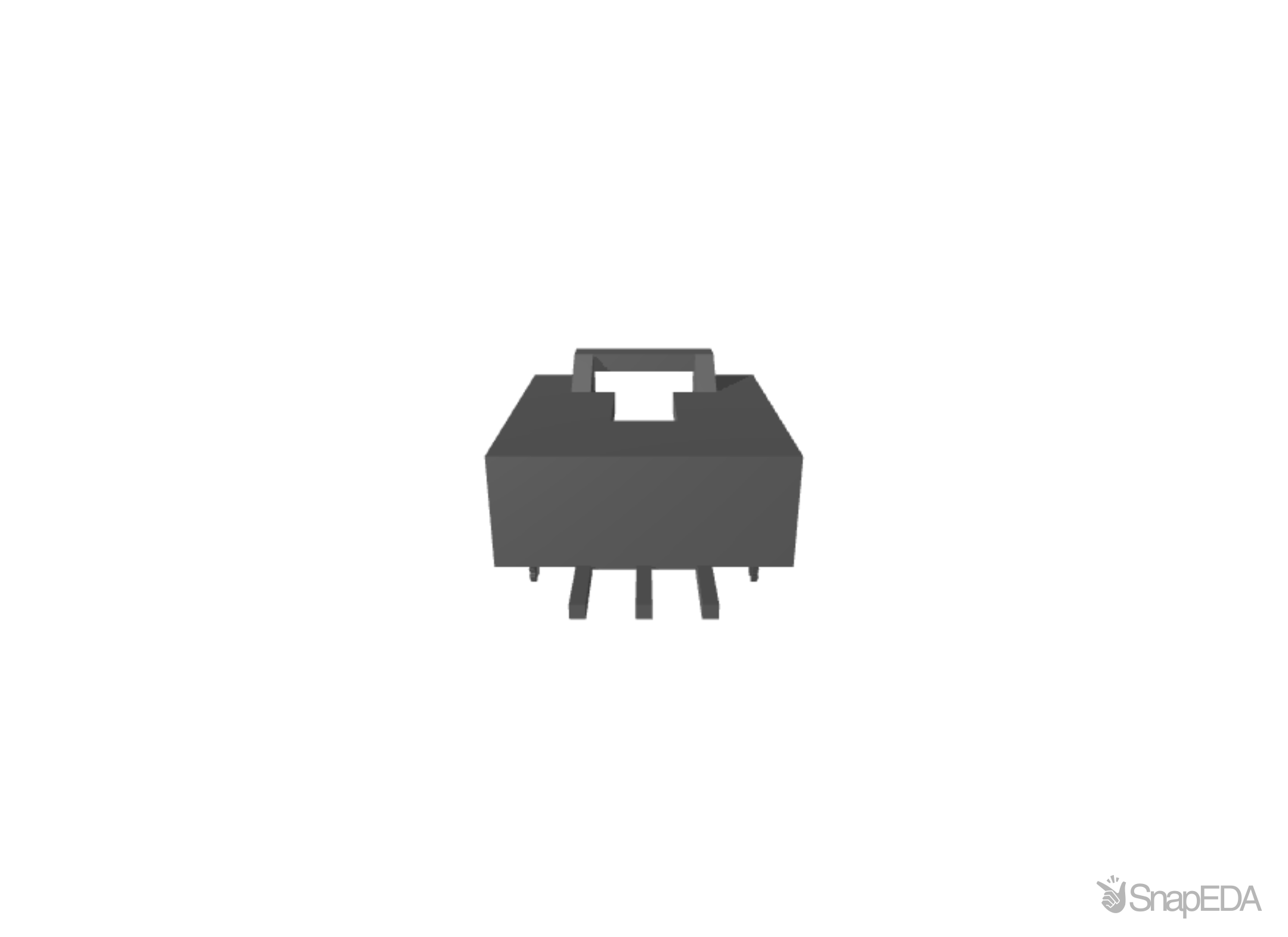

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 103639-5
| Part Name | 103639-5 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Latched |
| Centerline (Pitch) | 2.54 |
| Mating Retention Type | Polarized Lock |
| Housing Material | Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Hold-Down |
| Contact Retention Type | Locking Lance |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 3.3 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | 5.84 |
| TE Internal Number | 103639-5 |
| PCB Mount Orientation | Vertical |
| PCB Mount Alignment | Without |
| Connector Height | 13.59 |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Shrouded |
| Strain Relief | Without |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | .7 |
| Termination Method to Wire & Cable | Crimp |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Tube |
| Packaging Quantity | 30 |
| Number of Positions | 6 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin-Lead |
| RoHS | N |
| Mating Retention | With |
| Contact Base Material | Brass |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 2.54 |
| Row-to-Row Spacing | .1 |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | With |
| PCB Contact Termination Area Plating Material Finish | Bright |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
