103653-7
PCB Housing, Thermoplastic, 1 Row, Pin 0.1 in, UL 94V-0, 9, AMPMODU MTE Series | TE Connectivity 103653-7
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 103653-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

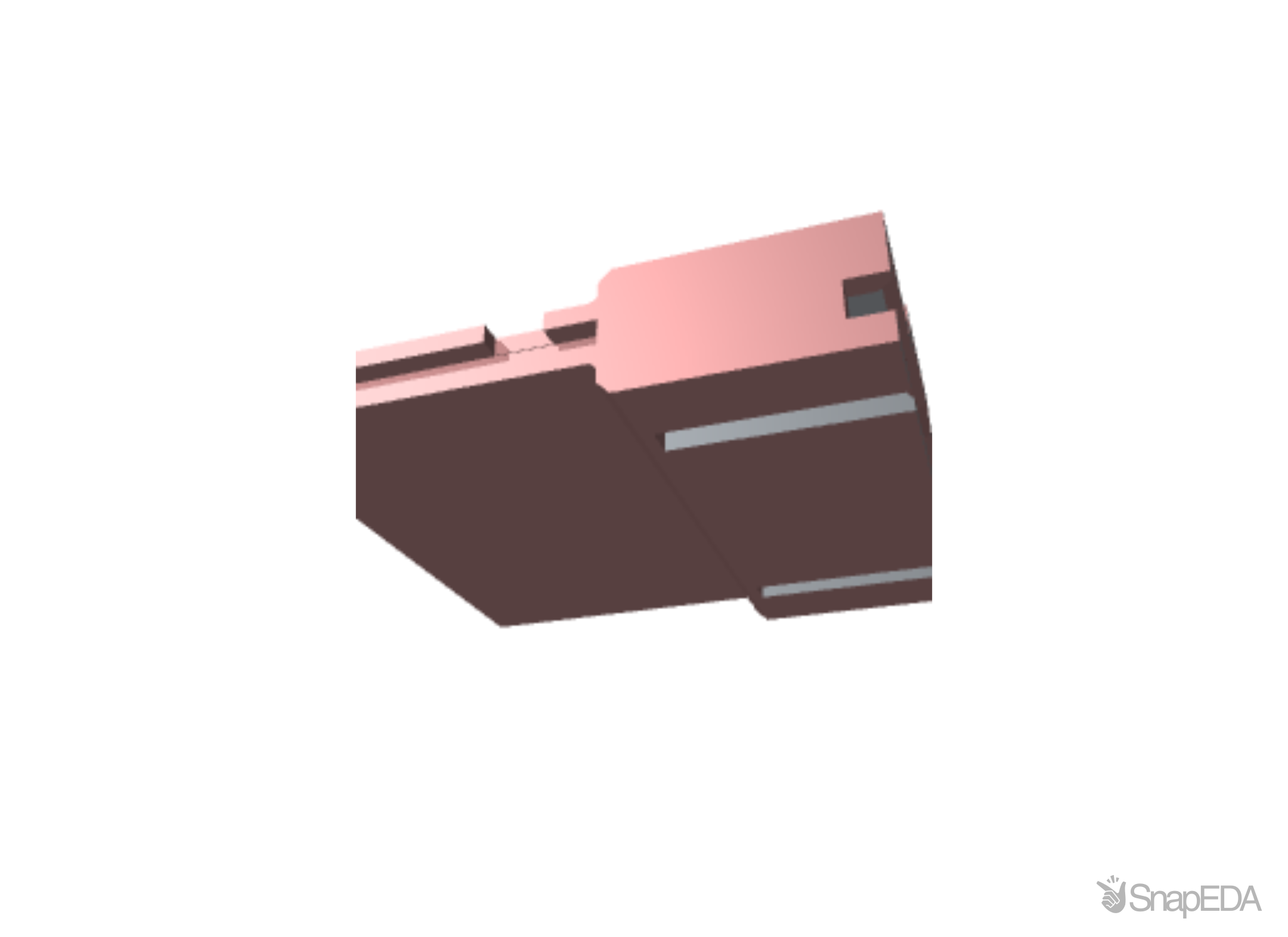

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 103653-7
| Part Name | 103653-7 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Latch |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 600 VACrms |
| Housing Material | Thermoplastic |
| Operating Voltage (V) | 250 VAC |
| For Use With | Header |
| Connector Style | Plug |
| Mating Connector Lock Type | Detent Latching |
| Number of Positions | 8 |
| TE Internal Number | 103653-7 |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Package |
| Connector Type | Housing |
| Packaging Quantity | 1 |
| Contact Layout | Inline |
| Length | 22.73 |
| Mating Alignment | With |
| Lock Type | Latch |
| RoHS | True |
| UL Flammability Rating | UL 94V-0 |
| Height | .26 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 103653-7 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Conrad |
5,920
|
1 x $1.97
|
Visit Site | |
| Farnell UK |
400
|
|
Visit Site | |
| Heilind Americas |
6,074
|
|
Visit Site | |
| Newark |
6,000
|
|
Visit Site | |
| Powell Electronics |
4,019
|
|
Visit Site | |
| RS Americas |
1,575
|
|
Visit Site | |
| Sager |
|
6,000 x $1.55
|
Visit Site | |
| TE Store |
5,036
|
|
Visit Site | |
| TTI Americas |
120
|
|
Visit Site | |
| element14 Singapore |
400
|
|
Visit Site |
No issues have been reported for the 103653-7
