104078-9
24 SYSTEM 50 RCPT ASSY DRST
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 104078-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

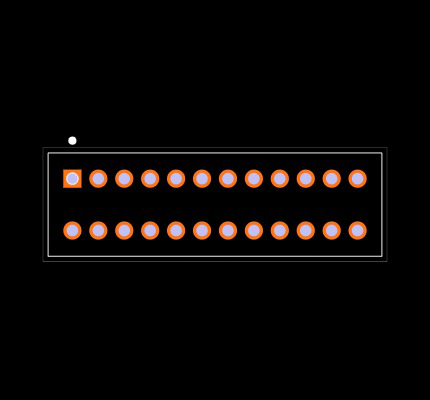

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 104078-9
| Part Name | 104078-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .05 |
| Pick and Place Cover | Without |
| Termination Method to Printed Circuit Board | Through Hole |
| Insulation Resistance | 5000 |
| PCB Contact Termination Area Plating Thickness | 150 |
| For Use With | Plug Assembly |
| Boss | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Hold-Down Post |
| PCB Mount Retention | With |
| Housing Material | Thermoplastic |
| TE Internal Number | 104078-9 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 2 |
| Housing Color | Black |
| Contact Base Material | Copper Alloy |
| Connector Assembly Type | PCB Mount Receptacle |
| Operating Temperature Range | -65 to 105 |
| Packaging Method | Box & Tube |
| Tail Length | .1 |
| Packaging Quantity | 32 |
| Connector Type | Connector Assembly |
| Contact Type | Socket |
| Number of Positions | 24 |
| Contact Mating Area Plating Material | Gold |
| RoHS | N |
| Approved Standards | CSA LR7189 |
| Product Type | Connector |
| Termination Post Length | 2.54 |
| UL Flammability Rating | UL 94V-0 |
| Height | 8.89 |
| Row-to-Row Spacing | .1 |
| Contact Current Rating (Max) (A) | 4 |
| Contact Mating Area Plating Thickness | 30 |
| Voltage (V) | 30 |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 104078-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
2,112 x $4.78
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Boersig GmbH |
|
1 x $6.37
|
Visit Site | |
| Farnell UK |
|
2,112 x $5.09
|
Visit Site | |
| Newark |
|
500 x $7.48
|
Visit Site | |
| Onlinecomponents |
56
|
|
Visit Site | |
| Sager |
|
32 x $7.33
|
Visit Site | |
| Verical |
55
|
|
Visit Site |
No issues have been reported for the 104078-9
