104878-7
03/05 MODII HDR SRST B/A .100
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 104878-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

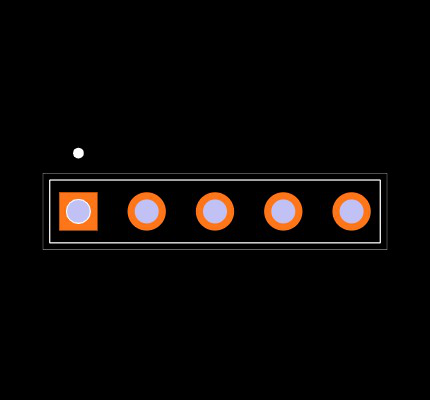

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 104878-7
| Part Name | 104878-7 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Contact Protection | Without |
| Housing Material | Thermoplastic |
| Selectively Loaded | Yes |
| Connector & Contact Terminates To | Printed Circuit Board |
| For Use With | Mates With Receptacles |
| High Speed Serial Data Connector | No |
| Number of Positions | 5 |
| PCB Mount Retention | Without |
| Stabilizers | Without |
| Board Standoff | Without |
| Mating Post Length | .23 |
| TE Internal Number | 104878-7 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Breakaway |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Termination End Plating Thickness | 100 200 |
| Connector Assembly Type | PCB Mount Header |
| Contact Base Material | Copper Alloy |
| Gasket | Without |
| Packaging Method | Carton |
| Connector Type | Connector Assembly |
| Packaging Quantity | 480 |
| Keyed | No |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| Solder Tail Contact Plating Material Finish | Matte |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| PCB Mounting Style | Through Hole Solder |
| Sealable | No |
| Positions Unloaded | 3, 4 |
| High Temperature Housing | No |
| Termination Post Length | .12 |
| Post Size | .025 |
| Termination End Plating Material | Matte Tin-Lead |
| Panel Mount Feature | Without |
| Contact Mating Area Plating Thickness | 15 |
| Product Type | Connector |
| High Temperature Compatible | No |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Mating Connector Lock | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
