1050564-1
Connector SMA PL 50Ohm Solder ST Cable Mount Gold Over Copper
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1050564-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

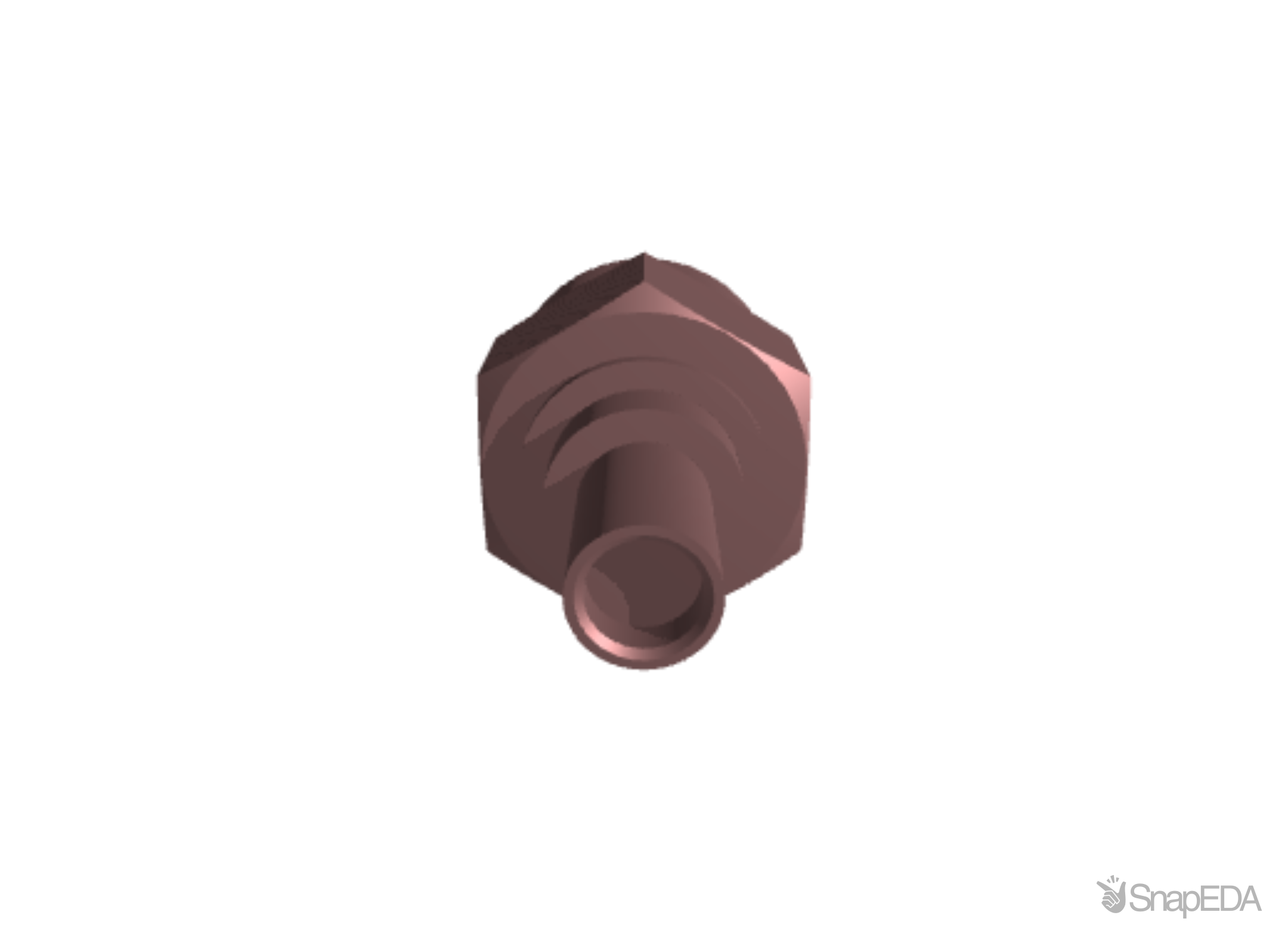

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1050564-1
| Part Name | 1050564-1 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Cable Connector Orientation | Straight |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| RF Connector Style | Plug |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | TFE Fluorocarbon |
| Number of Positions | 1 |
| Connector System | Cable-to-Cable |
| TE Internal Number | 1050564-1 |
| RF Connector Coupling Mechanism | Retractable Collar |
| Connector & Contact Terminates To | Wire & Cable |
| Coupling Nut Base Material | Stainless Steel |
| Body Plating Material | Gold over Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | Yes |
| Coupling Nut Plating Material | Gold over Nickel |
| Termination Method to Wire & Cable | Solder |
| Product Length | .532 |
| RF Connector Mated Outer Diameter (Approximate) | .25 |
| Operating Temperature Range | -85 – 329 |
| Packaging Method | Package |
| RF Interface | SMA |
| Detent | Without |
| Body Material | Stainless Steel |
| Connector Seal Type | Gasket |
| Operating Frequency | 18 |
| RF Connector Center Contact Plating Material | Gold over Copper |
| Cable Type | RG 405 Semi-Rigid |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1050564-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,259
|
|
Visit Site | |
| Onlinecomponents |
252
|
|
Visit Site | |
|
★ Featured
|
|
250 x $25.23
|
Visit Site | |
| Verical |
1,259
|
|
Visit Site |
No issues have been reported for the 1050564-1
If you experienced any issues with this part, please report it.
