1053489-1

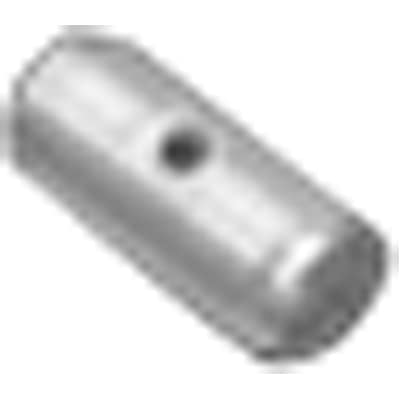

Straight 50Ohms RF Adapter OSM Socket to OSM Socket 0 - 18GHz | TE Connectivity 1053489-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1053489-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

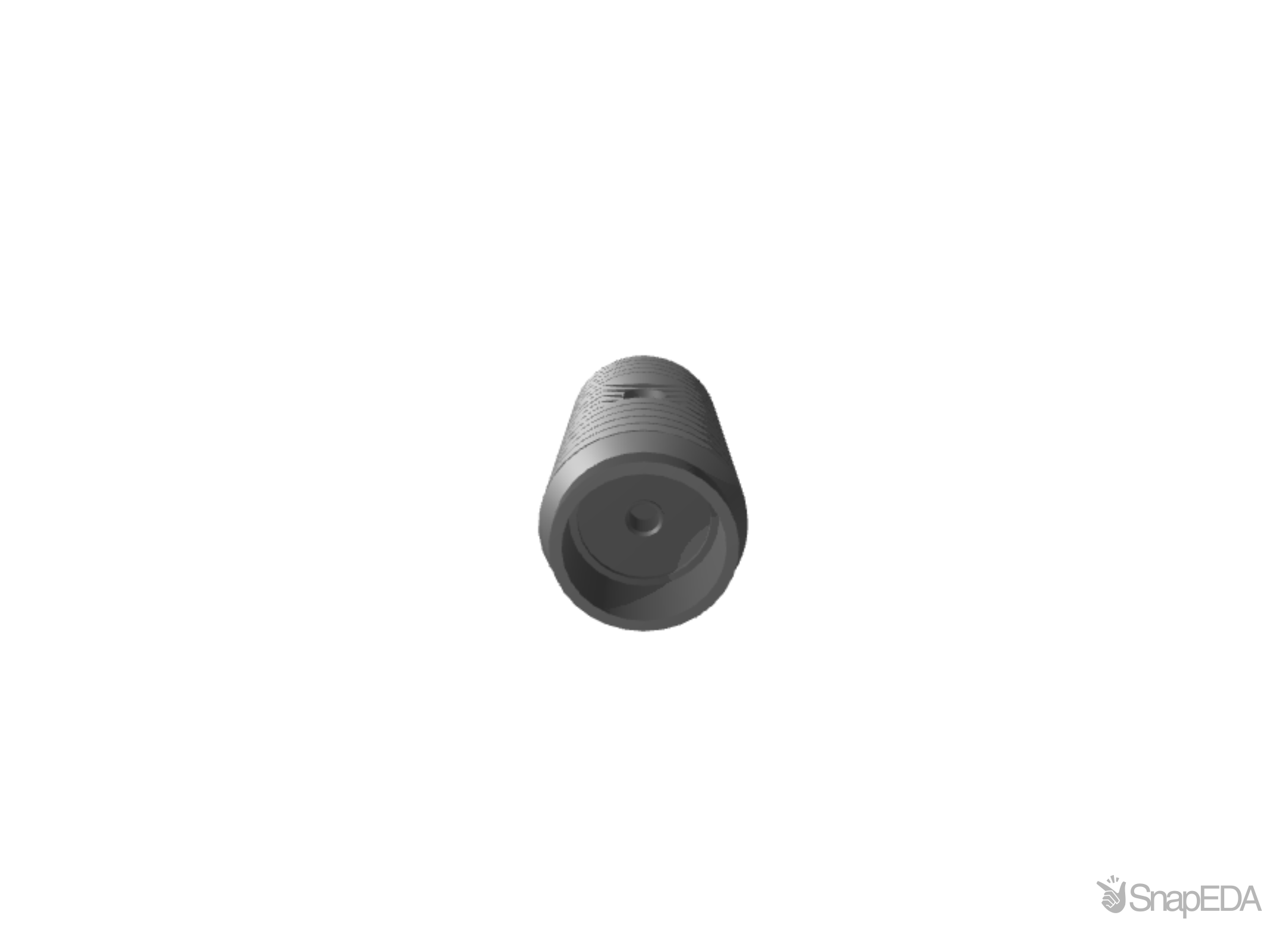

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1053489-1
| Part Name | 1053489-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Circuit Application | Power & Signal |
| Body Insulation | Without |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Wire & Cable |
| TE Internal Number | 1053489-1 |
| Number of Positions | 1 |
| Connector System | Cable-to-Cable |
| Body Style | Straight |
| Sealable | No |
| Connector Mounting Type | Bulkhead |
| RF Connector Type | SMA |
| Operating Temperature Range | -65 – 165 |
| Packaging Method | Package |
| Body Material | Stainless Steel |
| Impedance | 50 |
| RoHS | True |
| RF Connector Center Contact Plating Material | Gold |
| Length | .5 |
| Frequency | 18 |
| Body Plating Finish | Passivated |
| Isolated Ground | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Orientation | Straight |
| Gender B | Female |
| Gender A | Female |
| Adapter Type A | OSM |
| Length | 12.7 (mm) |
| Adapter Type | OSM Jack to OSM Jack |
| Contact Plating | Gold |
| Operating Frequency | 18 (GHz) |
| Impedance | 50 (Ω) |
| Adapter Type B | OSM |
| Contact Material | Beryllium Copper |
