105450-0101

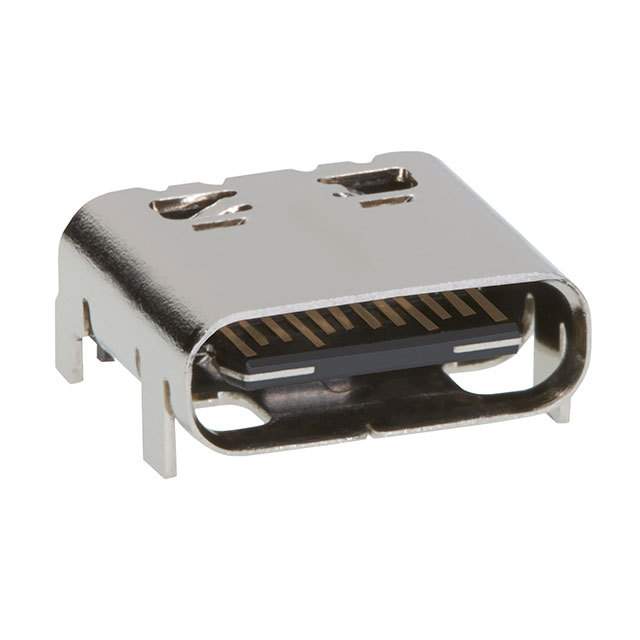

USB Shielded I/O Receptacle,Type C,Right Angle,Surface Mount,Gold over Nickel | Molex Incorporated 105450-0101
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 105450-0101 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 105450-0101
| Part Name | 105450-0101 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | 105450 |
| Current Rating (A) | 5.0 (A) |
| Usb Version | 3.1 |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 30.0 V |
| Gender | Female |
| Usb Type | C |
| Number Of Ports | 1 |
| Minimum Operating Temperature | -30.0 (°C) |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +85 (°C) |
| Body Orientation | Right Angle |
| Series Number | 105450 |
Inventory for the 105450-0101 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
27,529
|
|
Visit Site | |
|
★ Featured
|
58,860
|
|
Visit Site | |
|
★ Featured
|
24,974
|
515 x $0.59
|
Visit Site | |
| Arrow Europe |
5,200
|
|
Visit Site | |
| Onlinecomponents |
20,280
|
|
Visit Site | |
| Verical |
15,600
|
|
Visit Site |
No issues have been reported for the 105450-0101
