1057290-1

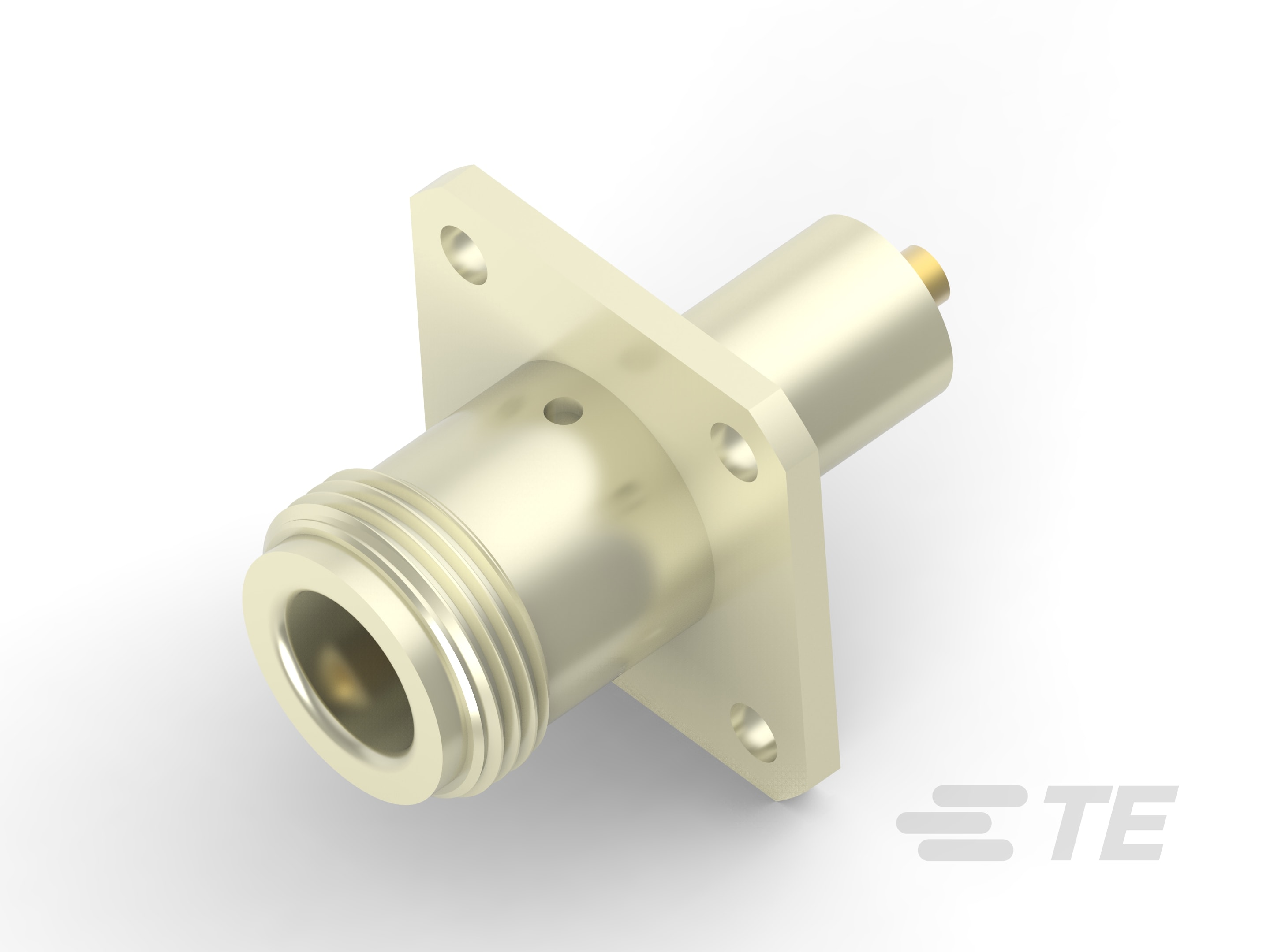

3052 1201 10,N SERIES FM PLUG
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1057290-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1057290-1
| Part Name | 1057290-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| RF Contact Captivation Method | Epoxy |
| Port Configuration | Single Port |
| RF Connector Style | Jack |
| Body Finish | Plated |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE Fluorocarbon |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| Part Category | Coax Connectors |
| TE Internal Number | 1057290-1 |
| RF Connector Coupling Mechanism | Threaded |
| Number of Positions | 1 |
| Connector System | Cable-to-Cable |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Panel |
| RF Connector Mated Outer Diameter (Approximate) | .75 |
| Panel Attachment Style | Front Mount |
| Operating Temperature Range | -85 – 329 |
| Packaging Method | Bag |
| RF Interface | N Type |
| Detent | Without |
| Body Material | Brass |
| Operating Frequency | 11 |
| Panel Mount Feature Type | Flange |
| RoHS | True |
| RF Connector Contact Configuration | Captivated Contacts |
| Grade | Mil-Type |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Nickel |
| Mounting Type | Panel Mount |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | N Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Solder |
| Operating Frequency | 0 to 11 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
