106014-1
2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights: Connector Connector Type = Type B, 25 Column Plug Interface Type = 2mm HM Contact Type = ACTION PIN Post, Signal
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 106014-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

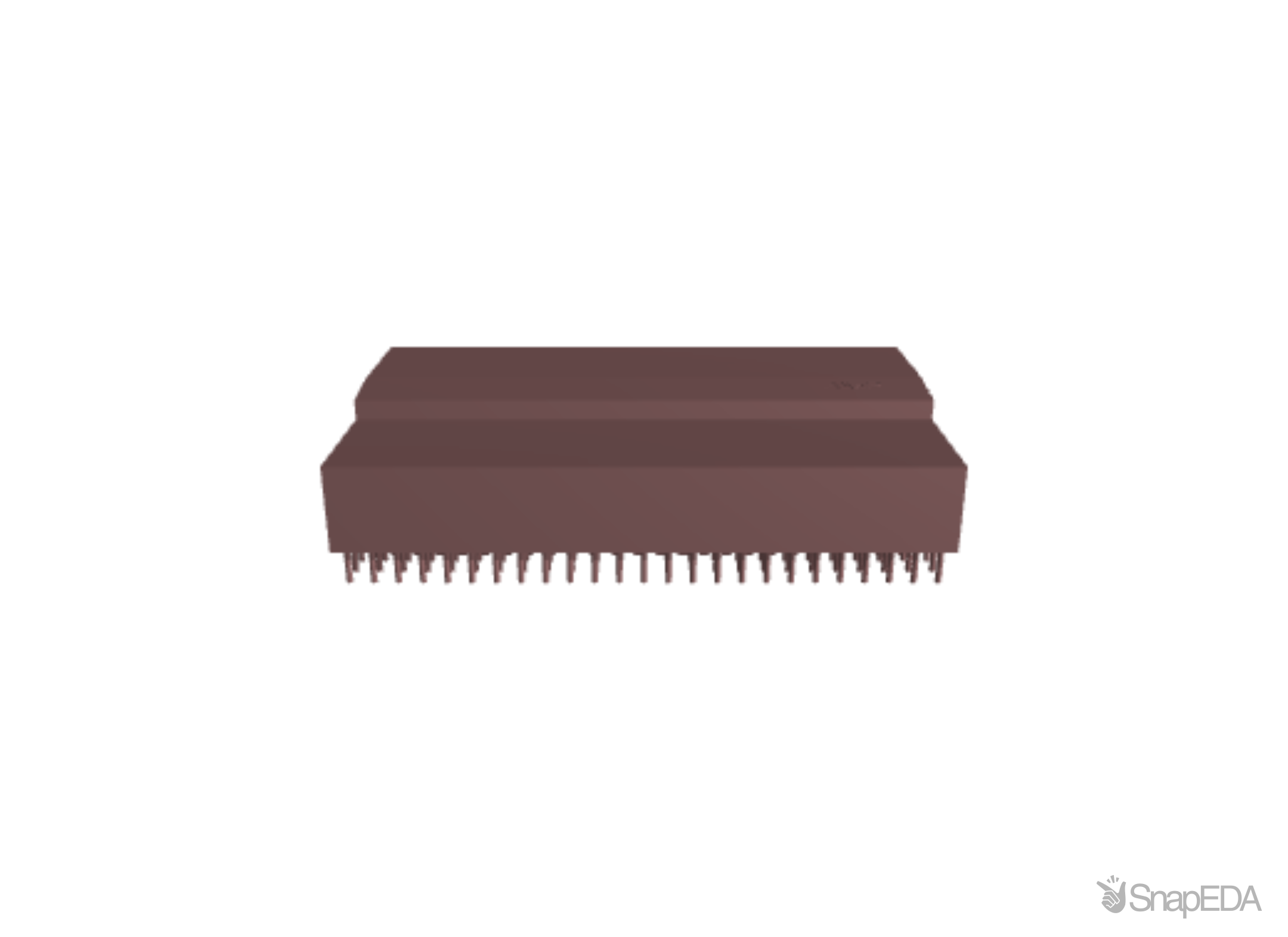

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 106014-1
| Part Name | 106014-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .078 |
| Circuit Application | Power & Signal |
| Housing Material | Polyester - GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Front Mating Level | Level 1 |
| Contact Mating Area Plating Material Thickness | 30 |
| Number of Positions | 125 |
| Contact Mating Area Length | 5.2 |
| CompactPCI Designation | None |
| AdvancedTCA Specified Product | No |
| TE Internal Number | 106014-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Number of Rows | 5 |
| Housing Color | Gray |
| Data Rate | ≤1 |
| Contact Base Material | Phosphor Bronze |
| Backplane Architecture | Mezzanine |
| Connector Mounting Type | Board Mount |
| Number of Columns | 25 |
| Feedthrough Post Length | 3.7 |
| Operating Temperature Range | -67 – 257 |
| Shielded | No |
| Connector Type | Connector Assembly |
| Packaging Quantity | 11 |
| Contact Configuration | Signal |
| Module Length | 50 |
| Interface Type | 2mm HM |
| Contact Mating Area Plating Material | Gold |
| Sealable | No |
| Crosstalk Version | Standard |
| UL Flammability Rating | UL 94V-0 |
| Termination End Plating Material | Tin-Lead over Nickel |
| Contact Current Rating (Max) (A) | 1.5 |
| Contact Type | Pin |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
