1060984-1
Through Hole MCX Conn jack, 50Ohms Impedance, Solder Termination, 0 - 6GHz | TE Connectivity 1060984-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
Get this part
Available from the TE Store
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1060984-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

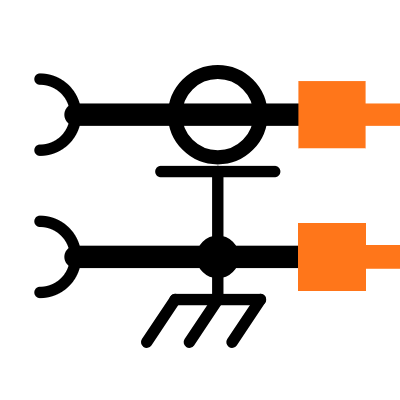

Symbol
No web preview
This Symbol is Available for

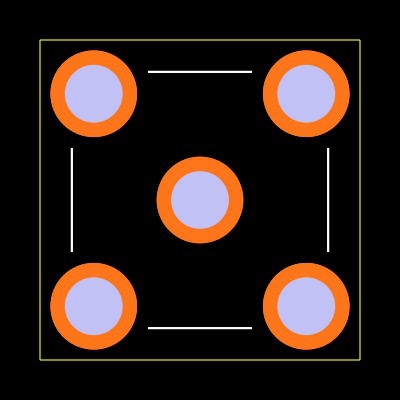

Footprint
No web preview
This Footprint is Available for

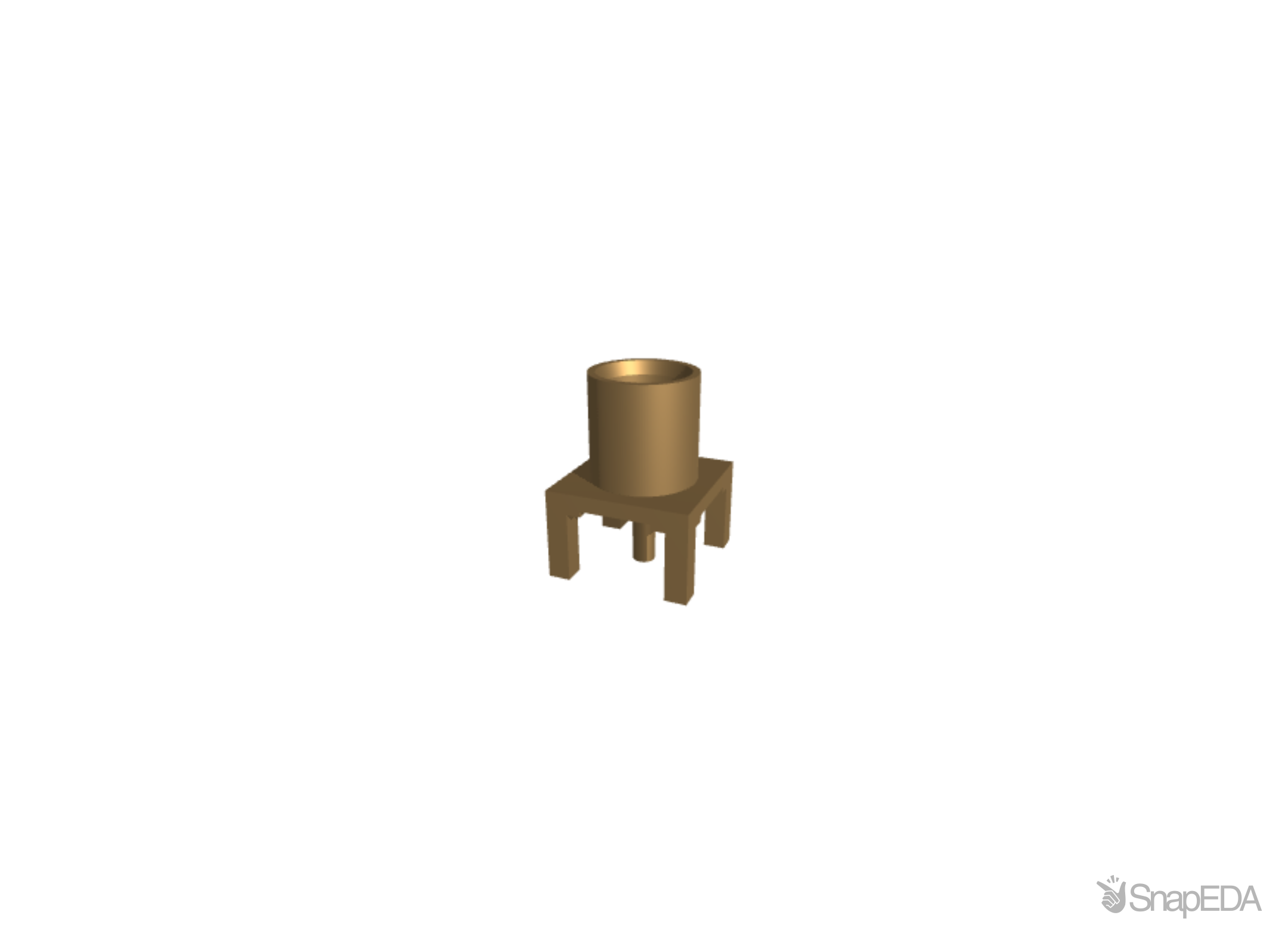

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1060984-1
| Part Name | 1060984-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Port Configuration | Single Port |
| TE Internal Number | 1060984-1 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| RF Connector Style | Jack |
| RF Connector Coupling Mechanism | Snap-On |
| Body Finish | Plated |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | TFE Fluorocarbon |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Number of Mounting Legs | 4 |
| PCB Tail Length | .115 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| RF Connector Mated Outer Diameter (Approximate) | 3.48 |
| RF Connector Center Contact Plating Thickness | 1397 |
| Operating Temperature Range | -65 – 165 |
| Body Shape | Circular |
| Packaging Method | Bag |
| RF Interface | MCX |
| Detent | Without |
| Body Material | Brass |
| Number of Positions | 1 |
| Operating Frequency | 6 |
| RoHS | True |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | 5.36 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | MCX Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Solder |
| Operating Frequency | 0 to 6 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
Inventory for the 1060984-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
290
|
|
Visit Site | |
|
★ Featured
|
25
|
|
Visit Site | |
|
★ Featured
Verical
|
3,160
|
20 x $9.59
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
295
|
|
Visit Site | |
| Farnell UK |
107
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
107
|
|
Visit Site | |
| Onlinecomponents |
679
|
|
Visit Site | |
| Powell Electronics |
2,114
|
|
Visit Site | |
| Sager |
1,000
|
200 x $6.89
|
Visit Site | |
| TE Connectivity |
2,499
|
|
Visit Site | |
| TME |
3,160
|
|
Visit Site | |
| TTI Americas |
1,000
|
|
Visit Site | |
| element14 Singapore |
107
|
|
Visit Site |
