106455-3
Conn Housing PL 8 POS 6mm Crimp ST Cable Mount Automotive Carton
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 106455-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

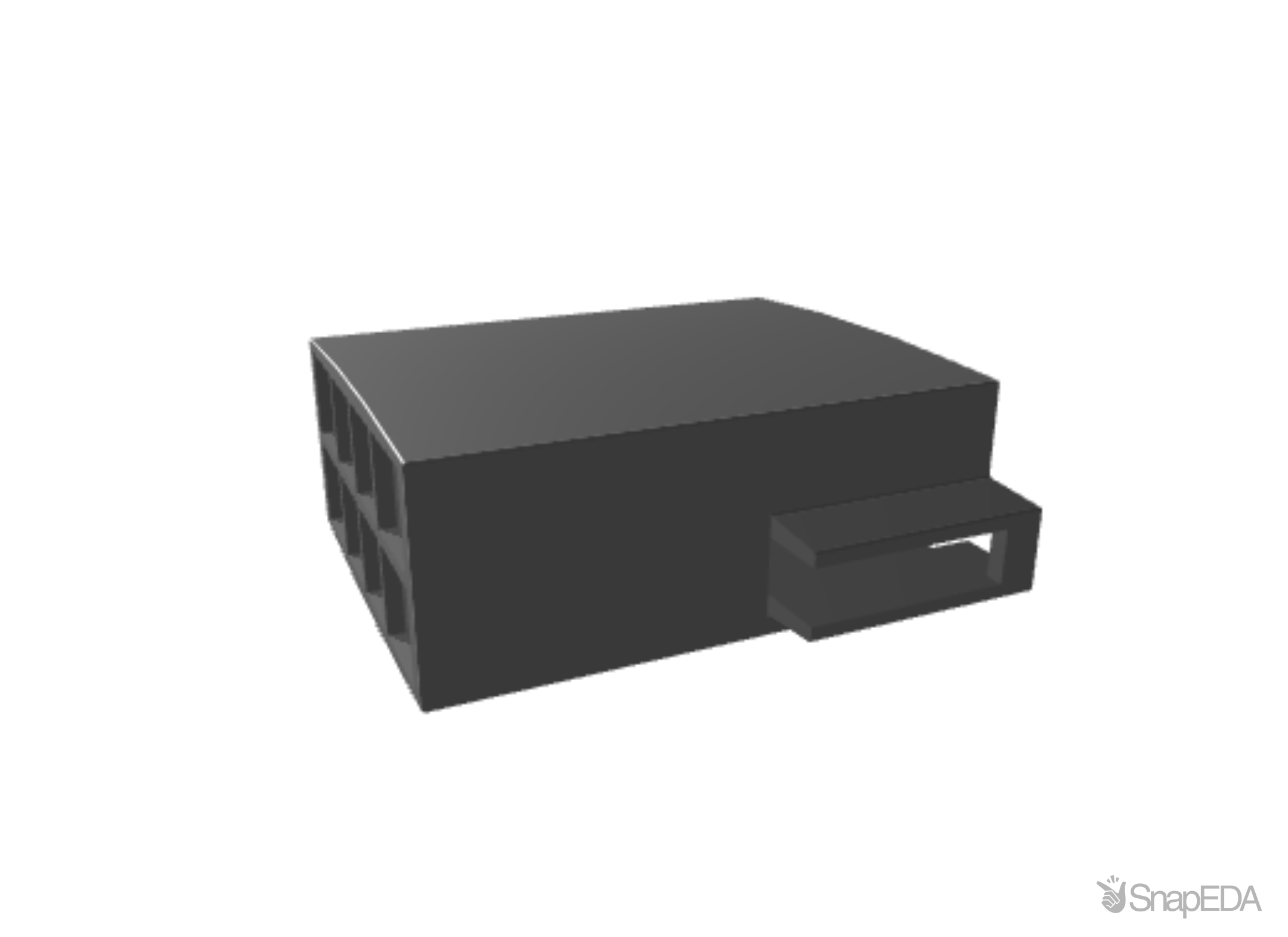

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 106455-3
| Part Name | 106455-3 |
| Manufacturer | TE Connectivity |
| Mounting Style | Free Hanging |
| Insulated | No |
| Product Type | Terminal Housing |
| Operating Temperature Range | -40 – 105 |
| Terminal & Splice Type | Tab |
| Packaging Method | Carton |
| TE Internal Number | 106455-3 |
| Packaging Quantity | 800 |
| Mating Retention Type | Latch |
| Housing Material | PBT |
| Mating Retention | With |
| Terminal Orientation | Straight |
| Housing Type | Tab Housing |
| Length | 1.38 |
| Housing Color | Gray |
| Sealable | No |
| Centerline | 6 |
| Number of Positions | 8 |
| RoHS | True |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 106455-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,360
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
194
|
|
Visit Site | |
| Conrad |
4,265
|
|
Visit Site | |
| Farnell UK |
3,839
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
211
|
|
Visit Site | |
| Onlinecomponents |
846
|
|
Visit Site | |
| Powell Electronics |
128
|
|
Visit Site | |
| Sager |
|
800 x $2.67
|
Visit Site | |
| TE Store |
1,460
|
|
Visit Site | |
| TME |
194
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| Verical |
194
|
|
Visit Site |
No issues have been reported for the 106455-3
If you experienced any issues with this part, please report it.
