106739-4
128 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 106739-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

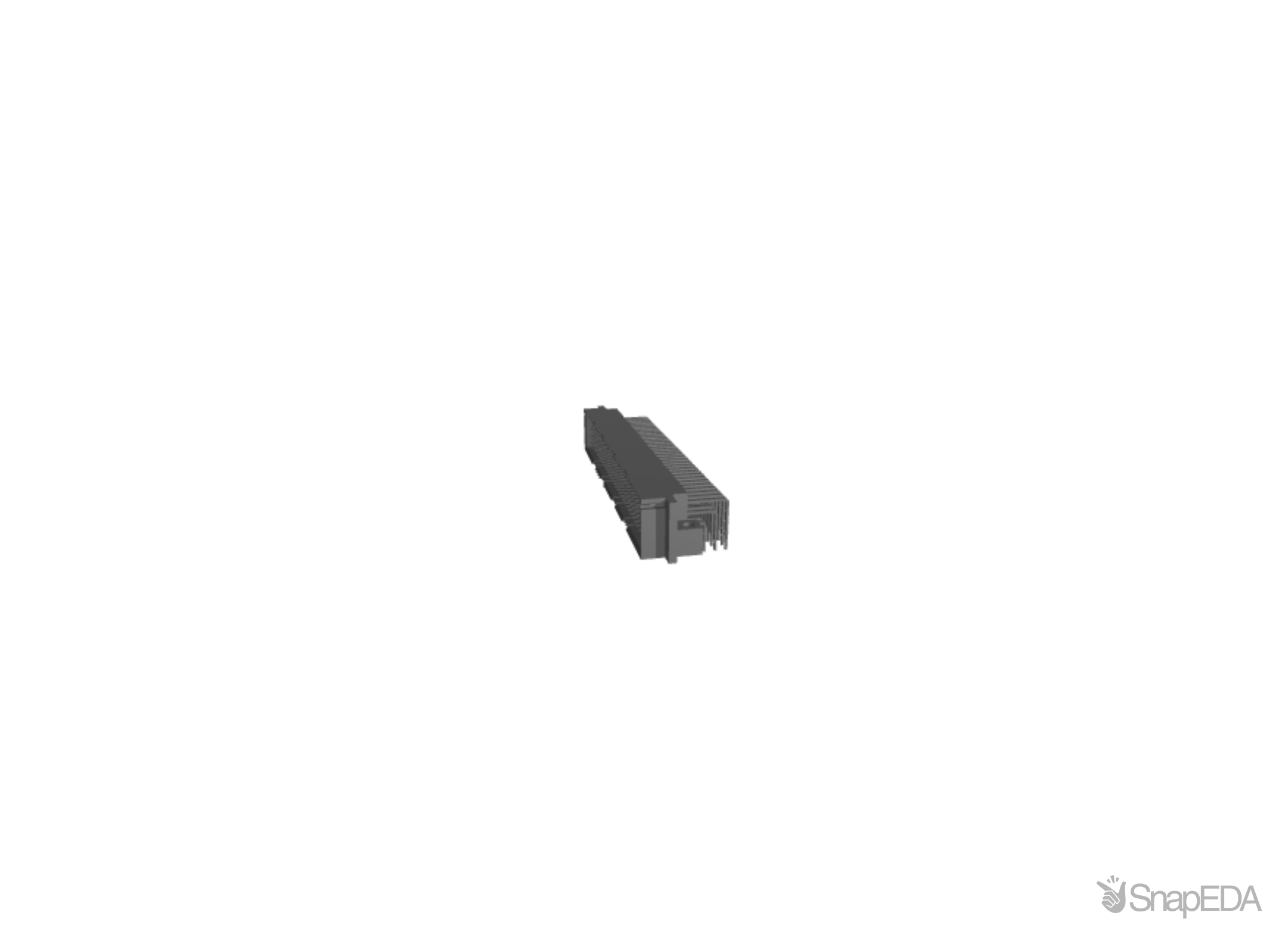

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 106739-4
| Part Name | 106739-4 |
| Manufacturer | TE Connectivity |
| Number of Positions | 128 |
| Row-to-Row Spacing | .1 |
| Zeilenanzahl | 4 |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| TE Internal Number | 106739-4 |
| Connector Mounting Type | Board Mount |
| Housing Material | Thermoplastic Polyester |
| Connector System | Board-to-Board |
| Connector Contact Load Condition | Fully Loaded |
| Housing Color | Gray |
| PCB Mount Orientation | Right Angle |
| Connector Style | Plug |
| Board-to-Board Configuration | Right Angle |
| Connector & Contact Terminates To | Printed Circuit Board |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
