1098169
SnapVerified
4 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1098169 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

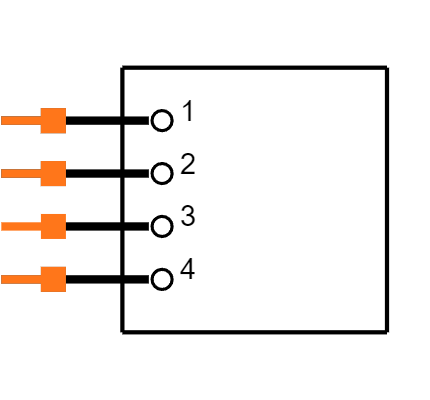

Symbol
No web preview
This Symbol is Available for

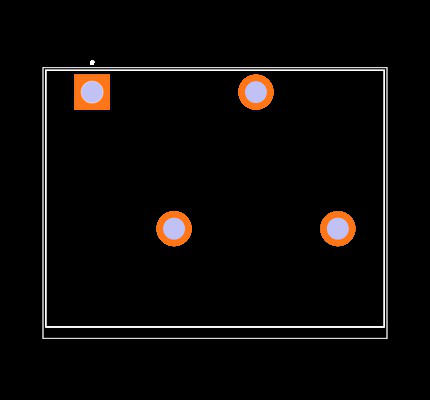

Footprint
No web preview
This Footprint is Available for

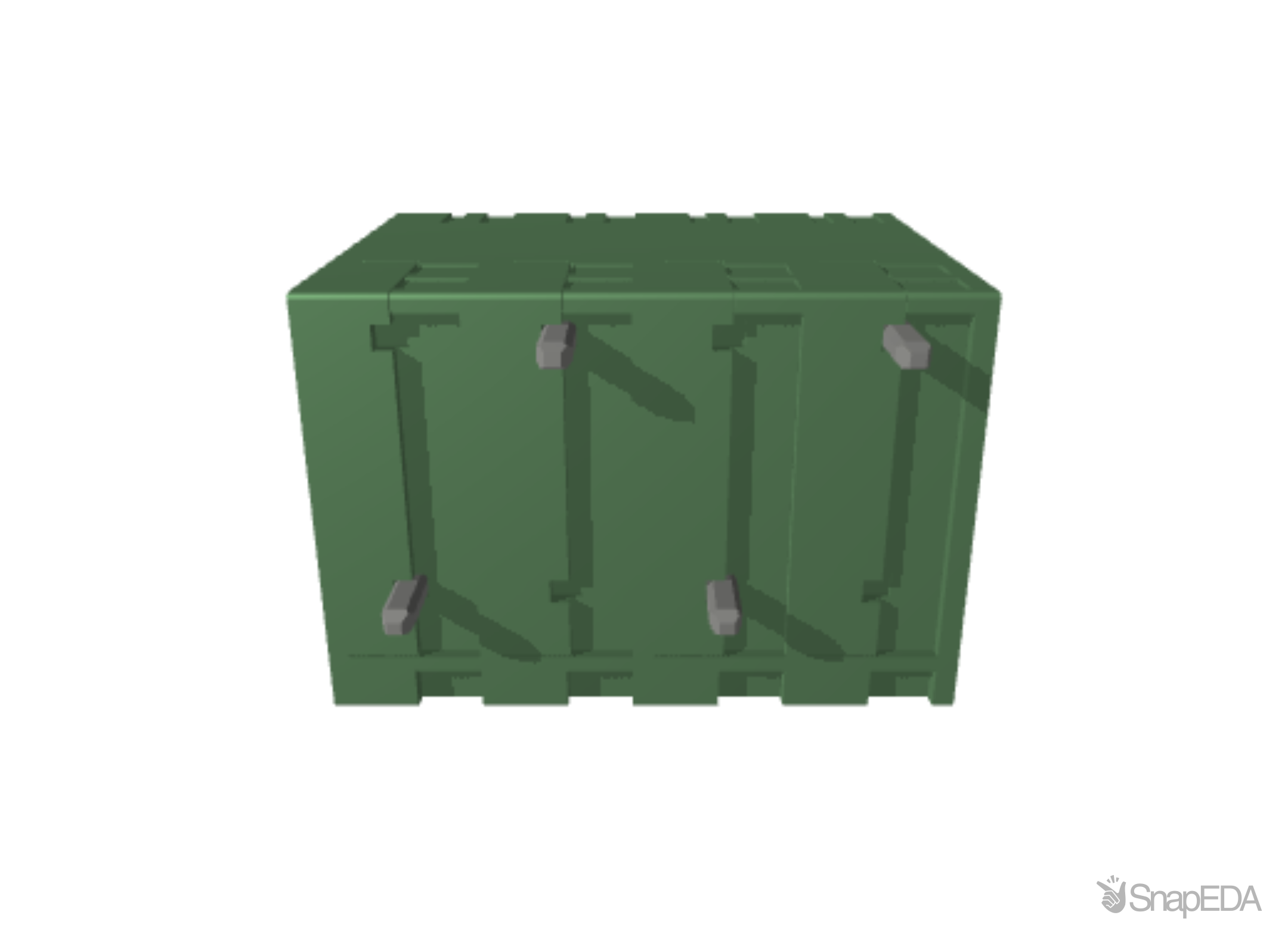

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1098169
| Part Name | 1098169 |
| Manufacturer | Phoenix Contact |
| Min. Conductor Cross-section (flexible Wire With Ferrule Without Plastic Collar) | 0.2 |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 10 |
| Width | 31 |
| GTIN | 4055626941714 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.34 |
| Product Description | PCB terminal block |
| Certificate/approval | cULus Recognized, UL Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4055626941714 |
| Internal Article Number | 1098169 |
| Number Of The Executions Of The Housing Parts | 0 |
| Max. Line Cross Section, Flexible | 10 |
| Depth | 24.3 |
| Manufacturer Product Designation | PCB terminal block |
| RoHS | True |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1098169 |
| Net Weight | 0.019 |
| Height | 27.85 |
| Min. Line Cross Section, Rigid | 0.2 |
| Application Standards | IECÂ 60947-7-4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1098169 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
| Buerklin |
|
1 x $6.62
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| Onlinecomponents |
100
|
|
Visit Site | |
| RS UK |
50
|
50 x $7.53
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Verical |
100
|
|
Visit Site |
No issues have been reported for the 1098169
