1135302
SnapVerified
8 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1135302 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

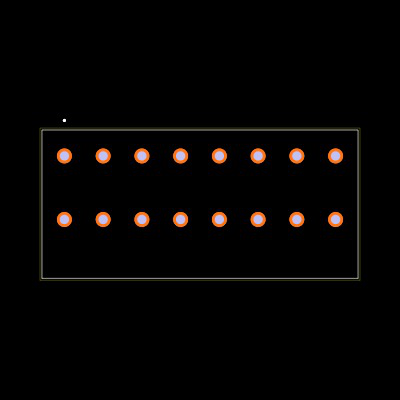

Footprint
No web preview
This Footprint is Available for

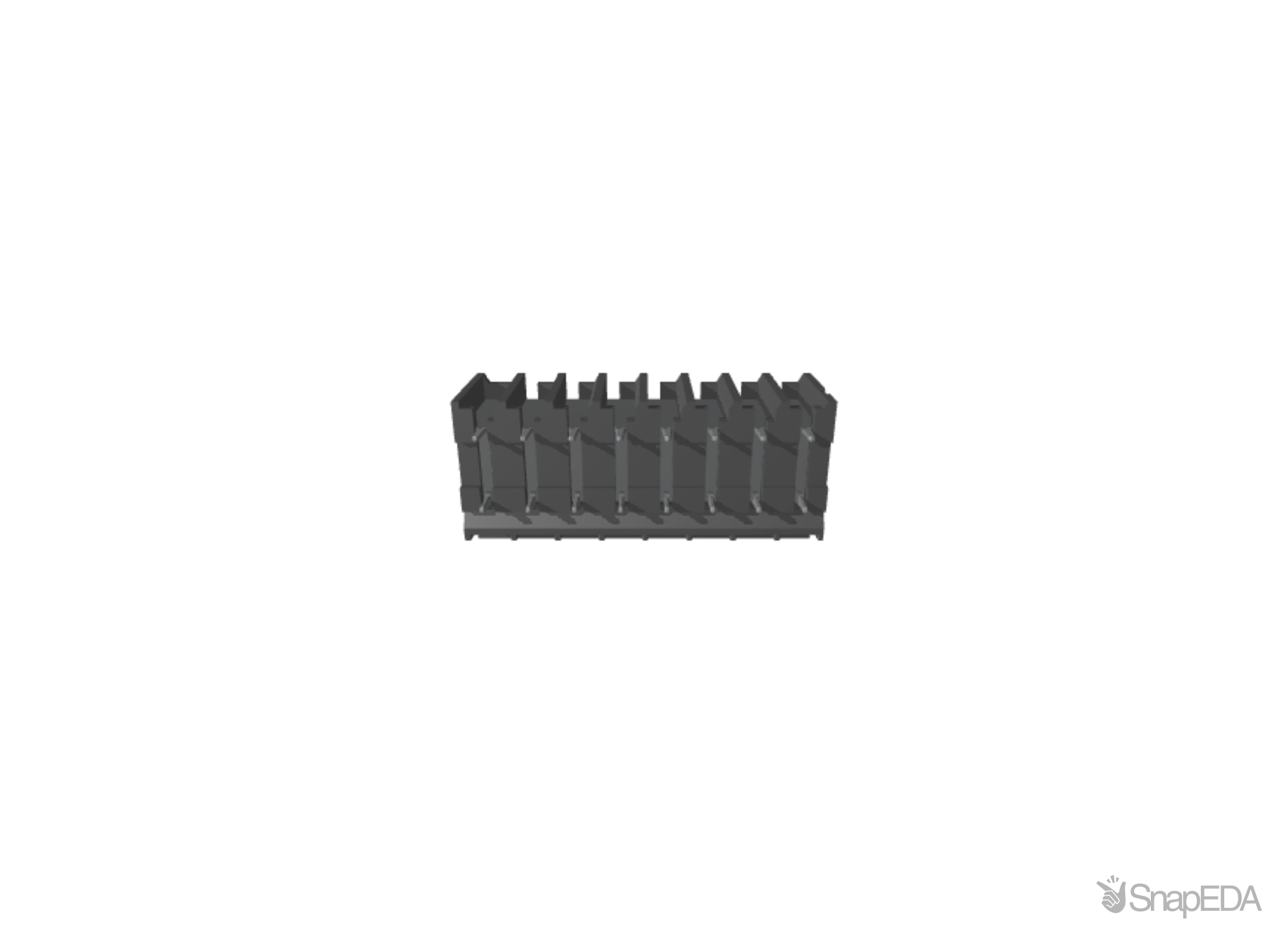

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1135302
| Part Name | 1135302 |
| Manufacturer | Phoenix Contact |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 4 |
| Width | 40.8 |
| GTIN | 4063151068875 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.2 |
| Product Description | PCB terminal block |
| Certificate/approval | cULus Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4063151068875 |
| Internal Article Number | 1135302 |
| Number Of The Executions Of The Housing Parts | 0 |
| Type Of Pcb Contacting | THR connection |
| Max. Line Cross Section, Flexible | 4 |
| Depth | 19.15 |
| Manufacturer Product Designation | PCB terminal block |
| RoHS | True |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1135302 |
| Material Of Insulation | LCP |
| Net Weight | 0.01268 |
| Height | 15.4 |
| Min. Line Cross Section, Rigid | 0.2 |
| Application Standards | IECÂ 60947-7-4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1135302 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
1 x $3.79
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| RS UK |
|
60 x $3.98
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the 1135302
