1156835
SnapVerified

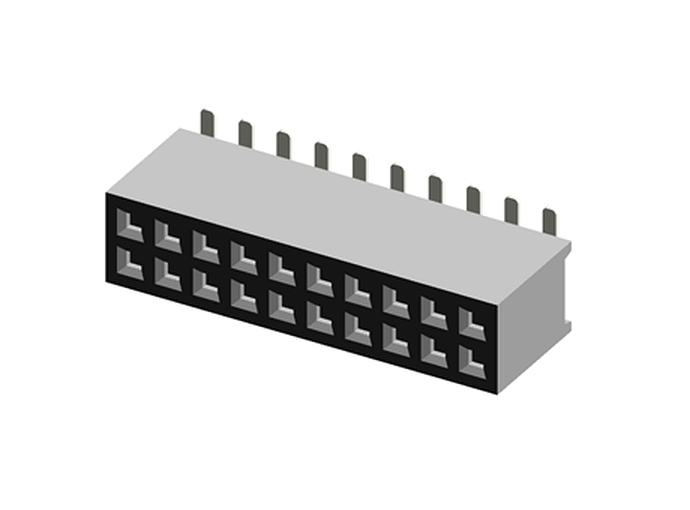

FQ 1,27D/ 20-SV- 490-1-BR | Phoenix Contact 1156835
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1156835 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

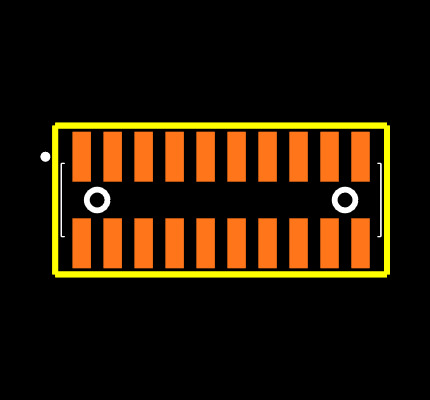

Footprint
No web preview
This Footprint is Available for

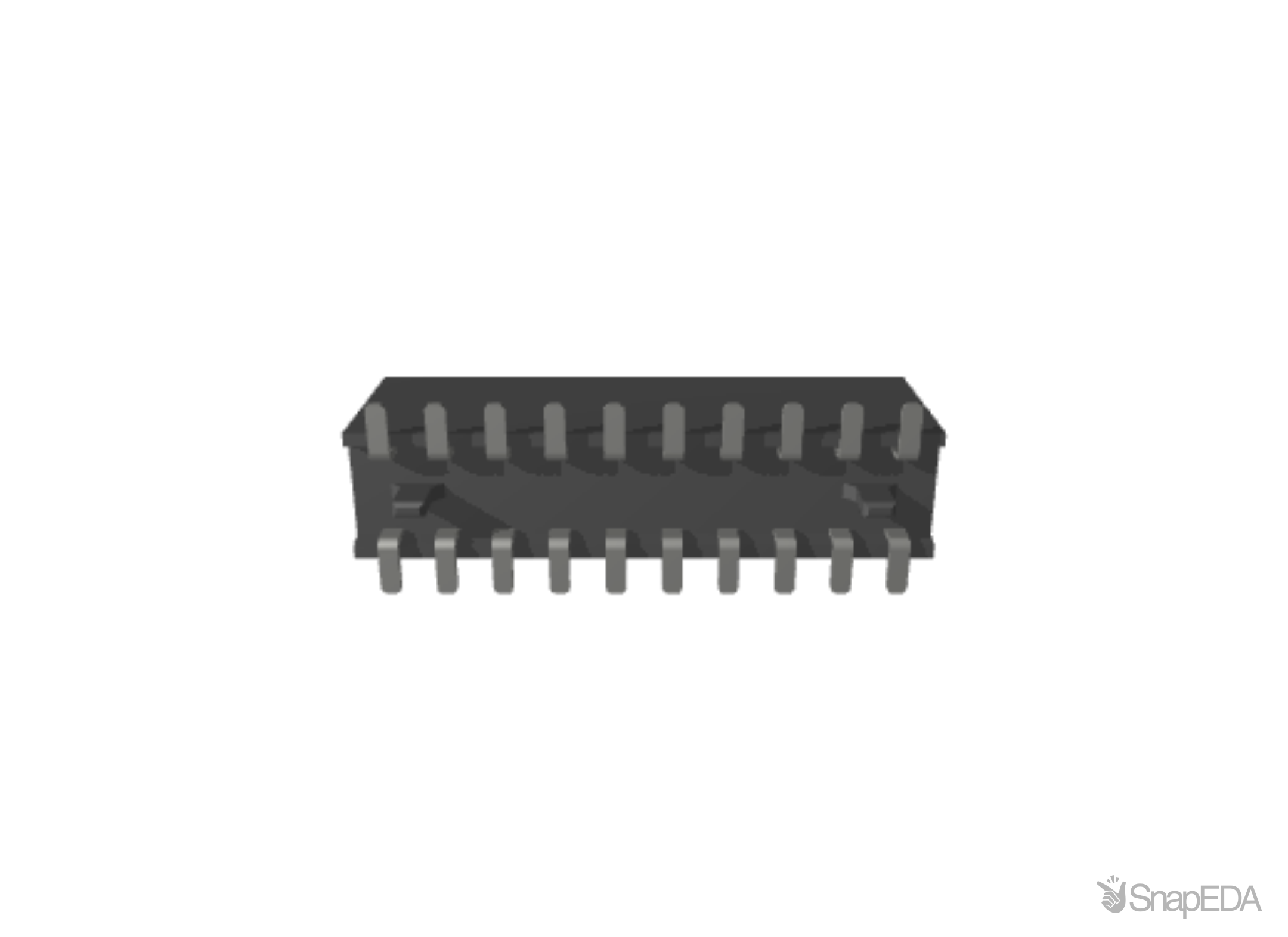

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1156835
| Part Name | 1156835 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Gold |
| Assembly Type | SMD soldering |
| Material Of Insulation | PA |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Type Of Pcb Contacting | SMD connection |
| Product Article Number Of Manufacturer | 1156835 |
| Product Description | Female strip |
| Category | Connectors |
| Height | 5.1 |
| Width | 13.1 |
| Depth | 4.5 |
| GTIN | 4063151160234 |
| Type Of Interlock | without |
| Rated Current (A) | 1 |
| Manufacturer Product Designation | Female strip |
| Design Of Electrical Connection | SMD soldering |
| RoHS | True |
| Color Of Housing | black |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1156835
If you experienced any issues with the symbol or footprint, please report it.
