12061C104MAT2A
Capacitor;Ceramic;Cap 0.1 uF;Tol 20%;SMT;Vol-Rtg 100V;X7R;Cut Tape | AVX 12061C104MAT2A
Availability: Out of Stock
Package Type: 3216
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 12061C104MAT2A by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

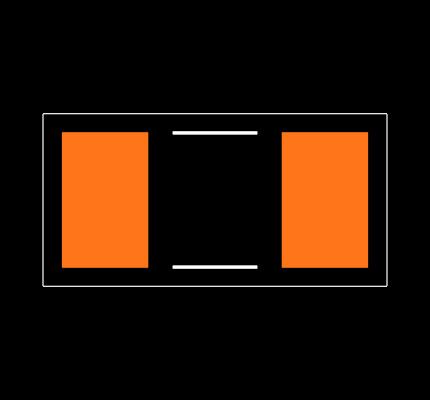

Footprint
No web preview
This Footprint is Available for

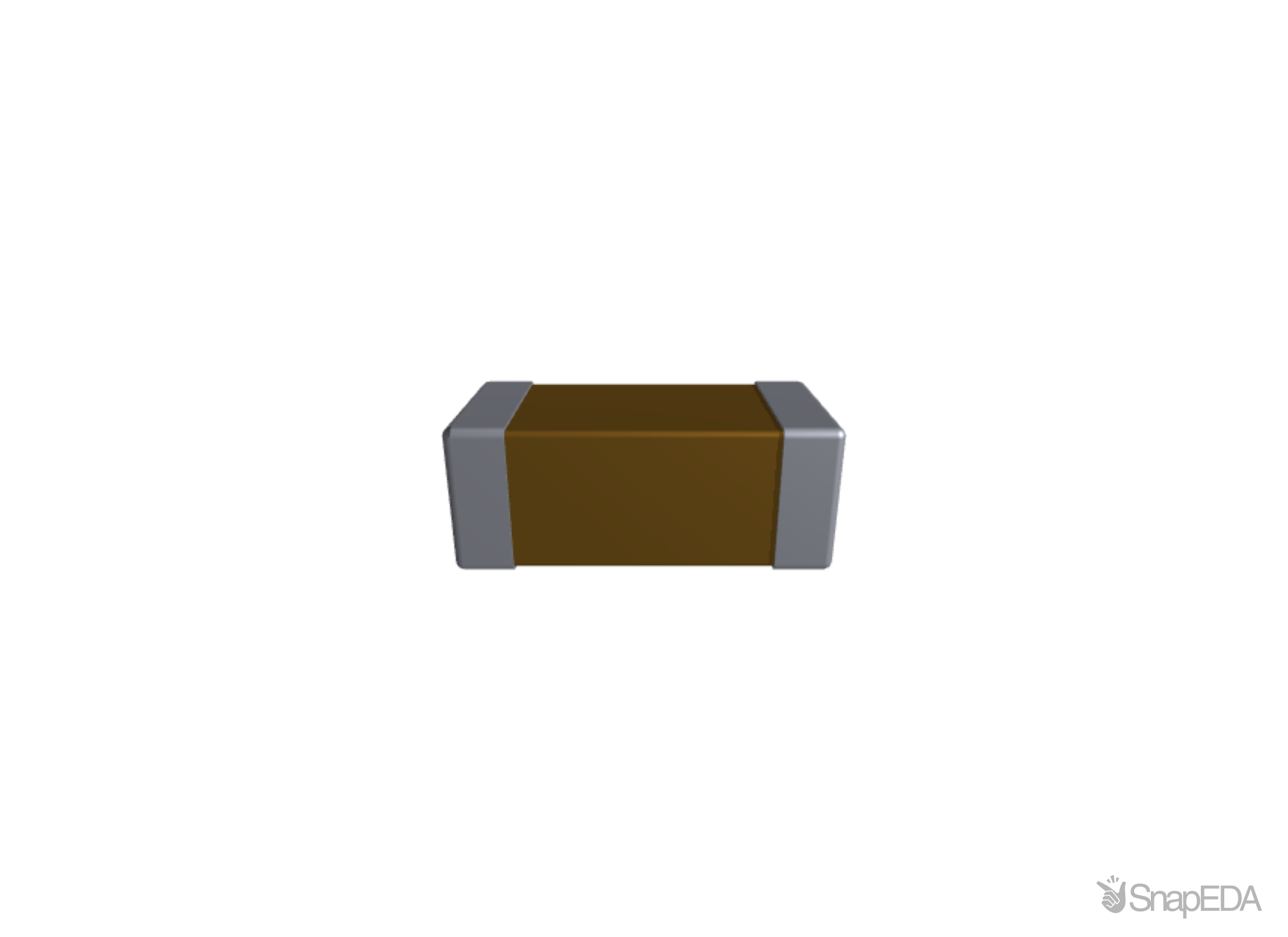

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 12061C104MAT2A
| Part Name | 12061C104MAT2A |
| Manufacturer | AVX |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.2 x 1.6 x 1.52 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1206 (3216M) |
| Tolerance | ±20 (%) |
| Length | 3.2 (mm) |
| Terminal Type | SMT |
| Capacitance | 100 (nF) |
| Depth | 1.6 (mm) |
| Voltage (V) | 100 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Height | 1.52 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Automotive Standard | AEC-Q200 |
| Dielectric | X7R |
No issues have been reported for the 12061C104MAT2A
