12062C473KAT2A
Capacitor;Ceramic;Cap 0.047 uF Tol 10%;SMT;Vol-Rtg 200V;X7R;TR | AVX 12062C473KAT2A
Availability: In Stock
Package Type: 3216
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 12062C473KAT2A by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

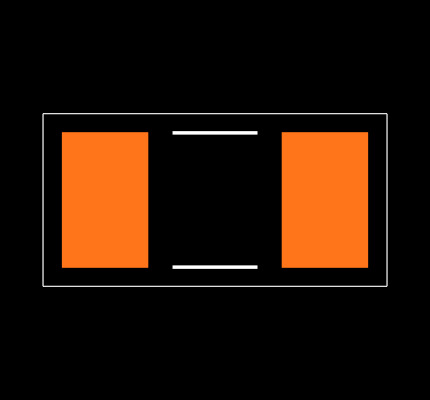

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 12062C473KAT2A
| Part Name | 12062C473KAT2A |
| Manufacturer | AVX |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Suppression Class | Class II |
| Dimensions | 3.2 x 1.6 x 1.27 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1206 (3216M) |
| Maximum Operating Temperature | +125 (°C) |
| Depth | 1.6 (mm) |
| Height | 1.27 (mm) |
| Capacitance | 47 (nF) |
| Length | 3.2 (mm) |
| Voltage (V) | 200 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Surface Mount |
| Dielectric | X7R |
Inventory for the 12062C473KAT2A by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
1,110
|
|
Visit Site | |
| Newark |
1,110
|
|
Visit Site | |
| RS UK |
3,500
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| TME |
5,498
|
|
Visit Site | |
| TTI Americas |
112,000
|
|
Visit Site | |
| Verical |
5,498
|
|
Visit Site | |
| element14 Singapore |
1,110
|
|
Visit Site |
No issues have been reported for the 12062C473KAT2A
