12103C106KAT2A
Capacitor;Ceramic;Cap 10uF Tol 10%;SMT;Vol-Rtg 25V;X7R;TR | AVX 12103C106KAT2A
Availability: In Stock
Package Type: 3325
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 12103C106KAT2A by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

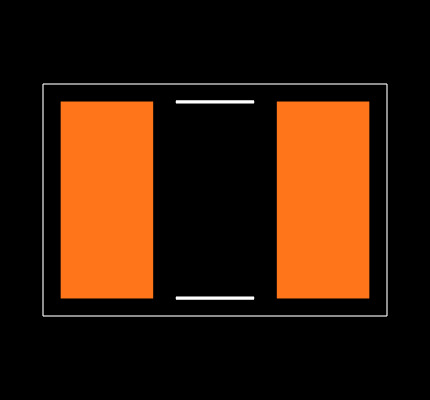

Footprint
No web preview
This Footprint is Available for

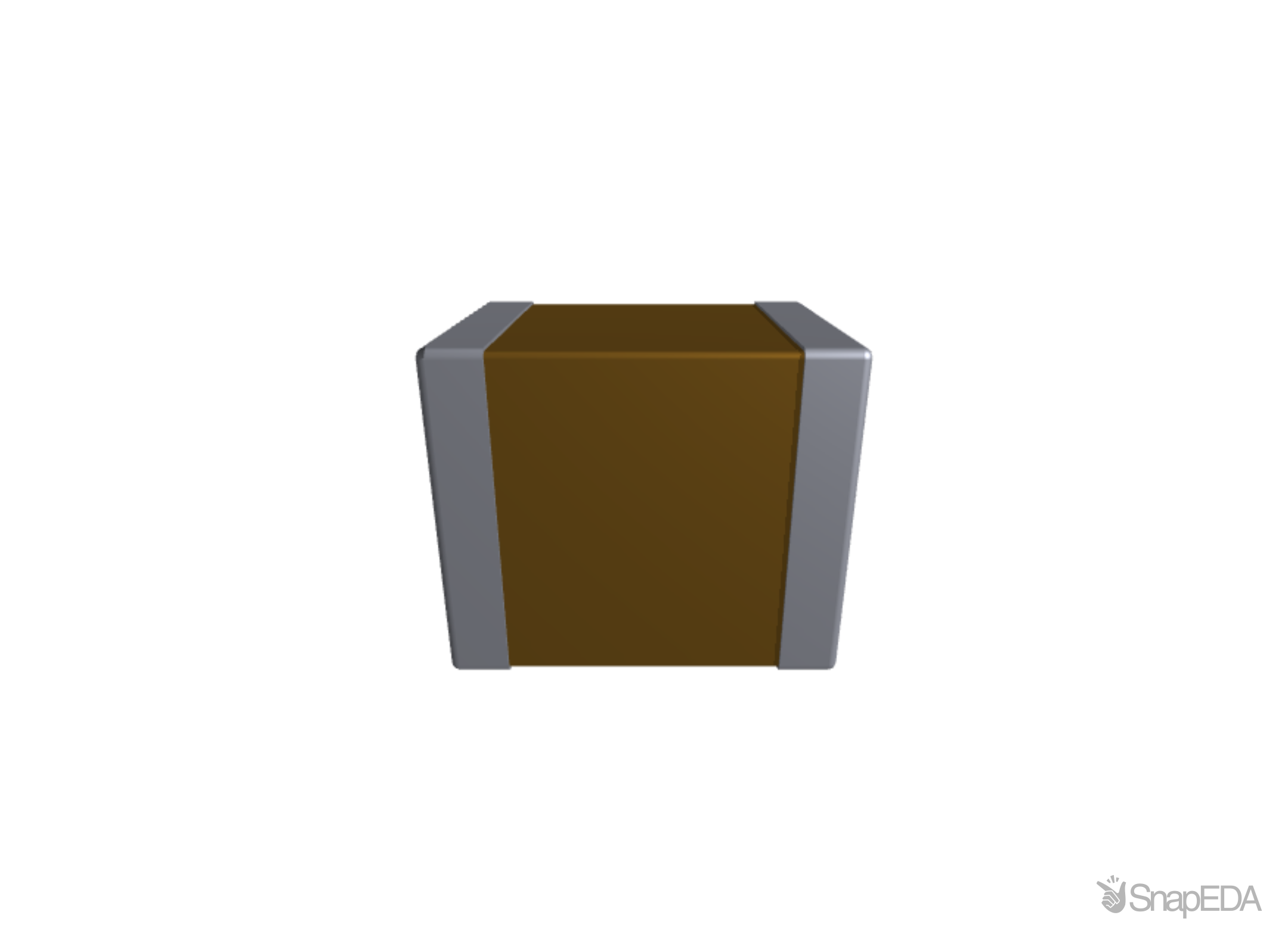

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 12103C106KAT2A
| Part Name | 12103C106KAT2A |
| Manufacturer | AVX |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tolerance Plus | +10 (%) |
| Dimensions | 3.2 x 2.5 x 2.79 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1210 (3225M) |
| Series | Standard |
| Depth | 2.5 (mm) |
| Temperature Coefficient | ±15 (%) |
| Height | 2.79 (mm) |
| Capacitance | 10 (µF) |
| Length | 3.2 (mm) |
| Voltage (V) | 25 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Surface Mount |
| Dielectric | X7R |
| Tolerance Minus | -10 (%) |
