1234277
SnapVerified
9 Position Terminal Block Header, Blade Pins, Shrouded (4 Side) 0.250" (6.35mm) 90°, Right Angle Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1234277 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

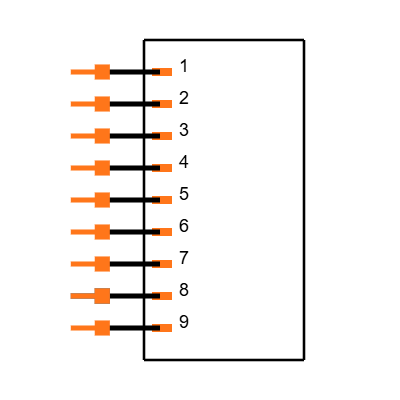

Symbol
No web preview
This Symbol is Available for

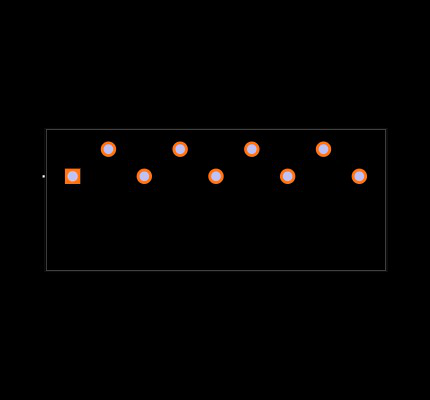

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1234277
| Part Name | 1234277 |
| Manufacturer | Phoenix Contact |
| Rated Current (A) | 24 |
| Width | 60.1 |
| GTIN | 4063151338022 |
| Type Of Interlock | without |
| Assembly | plugged-in |
| Product Description | PCB header |
| Certificate/approval | cULus Recognized, UL Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4063151338022 |
| Internal Article Number | 1234277 |
| Color Of Housing | black |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Depth | 25 |
| Design Of Electrical Connection | THR soldering / wave soldering |
| Manufacturer Product Designation | PCB header |
| RoHS | True |
| Life Cycle Status | New Product |
| Assembly Type | THR soldering / wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1234277 |
| Material Of Insulation | LCP |
| Pole Number | 9 |
| Height | 12.8 |
| Application Standards | IEC 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1234277 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Europe |
|
25 x $5.94
|
Visit Site |
No issues have been reported for the 1234277
