1255595

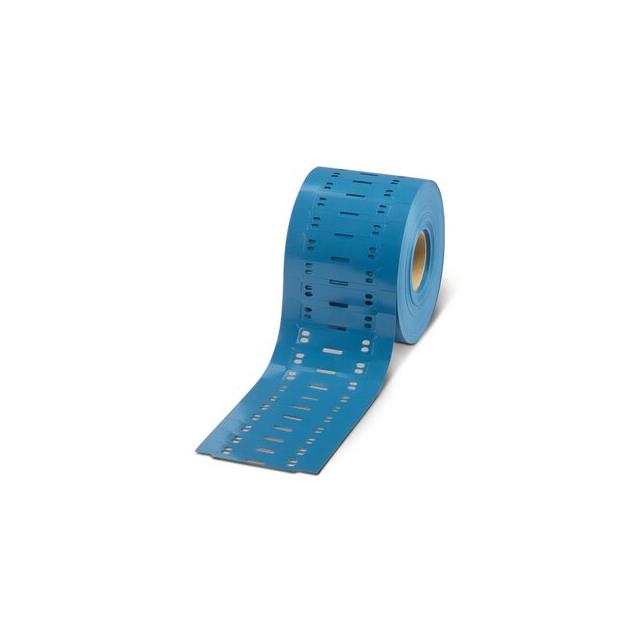

Wire Marker, Cable Tie 0.47" W x 1.57" L (12.0mm x 40.0mm) Blue Thermoplastic Polyurethane (TPU)
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1255595 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1255595
| Part Name | 1255595 |
| Manufacturer | Phoenix Contact |
| Assembly Type | quick fastening |
| Material | thermoplastic polyurethan-elastomers (TPU) |
| Max. Relative Humidity (operation) | 50 |
| Product Article Number Of Manufacturer | 1255595 |
| Width | 12 |
| Color | blue |
| Min. Relative Humidity (operation) | 50 |
| Net Weight | 0.02222 |
| Product Description | Detectable cable markers |
| Smudge Resistance | DINÂ ENÂ 61010-1 (VDEÂ 0411-01):2020-03 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | HB |
| GTIN | 4063151362522 |
| Max. Ambient Temperature | 105 |
| Manufacturer Product Designation | Detectable cable markers |
| Number Of The Executions Of The Housing Parts | 0 |
| Without Halogens | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
