1287
Male .250" Quick Fit Terminal
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1287 by Keystone and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

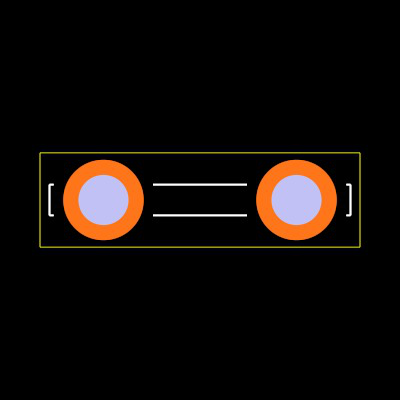

Footprint
No web preview
This Footprint is Available for

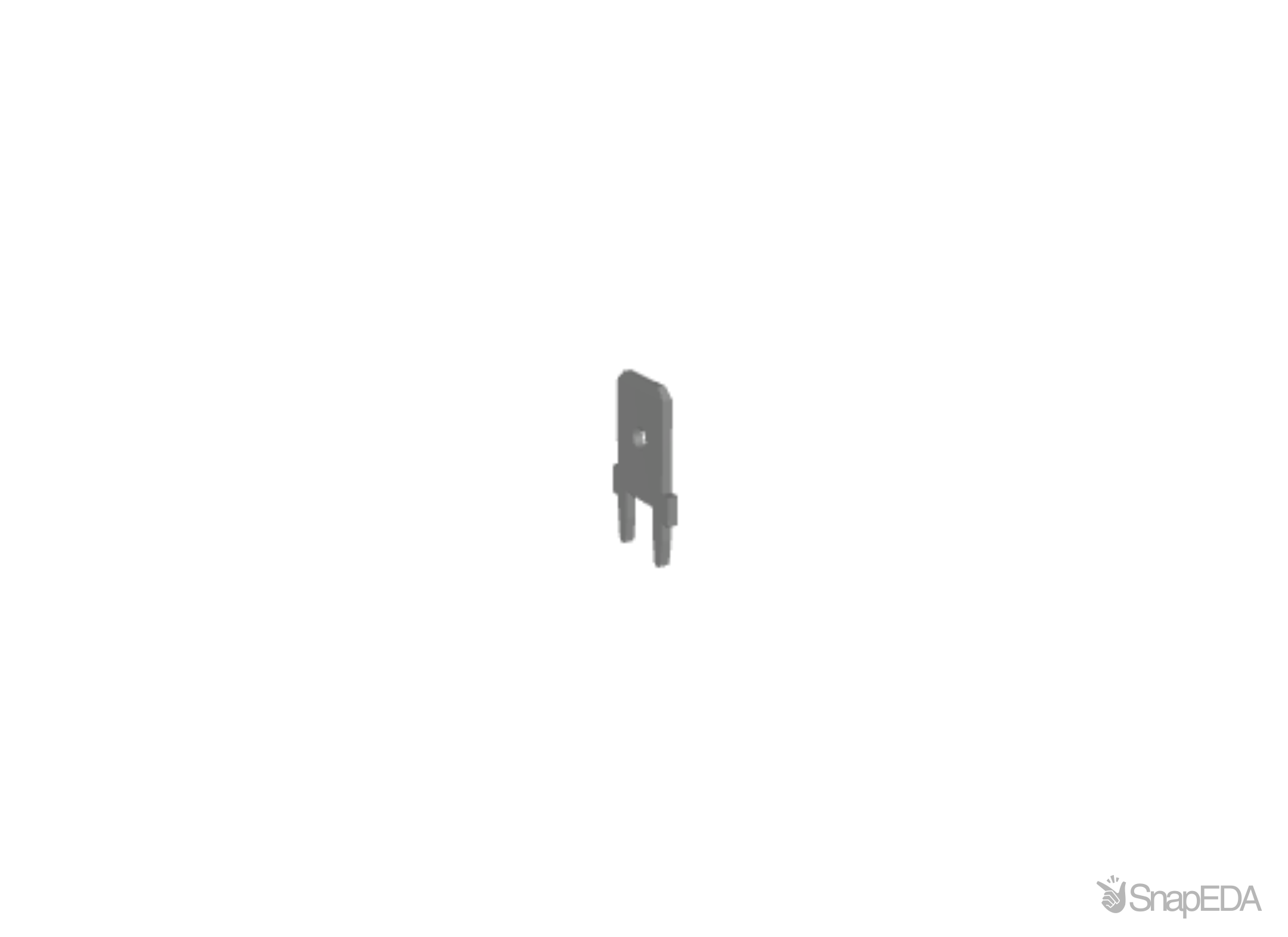

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1287
| Part Name | 1287 |
| Manufacturer | Keystone Electronics Corp. |
| Category | Terminals & Test Points |
| RoHS | True |
| Product Link | http://www.keyelco.com/product.cfm/Vertical-Mount/1287/product_id/610 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tab Thickness | 0.81 (mm) |
| Tab Width | 6.35 (mm) |
| Series | PC QUICK-FIT |
| Termination Method | Solder |
| Gender | Male |
| Tab Size | 6.35 x 0.81 (mm) |
| Contact Plating | Tin |
| Overall Length | 14.02 (mm) |
| Insulation | Uninsulated |
| Type | PCB Tab |
| Contact Material | Brass |
No issues have been reported for the 1287
