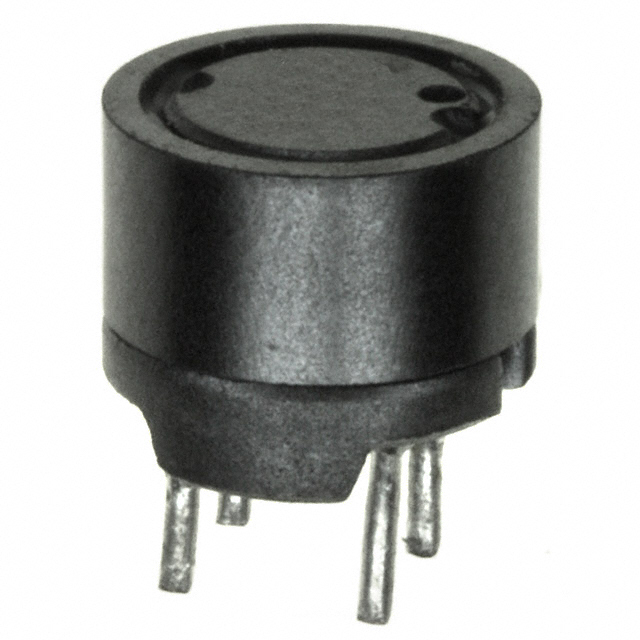

12LRS156C
15 mH Shielded Wirewound Inductor 95 mA 37Ohm Max Radial, Vertical Cylinder, 4 Leads
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 12LRS156C by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

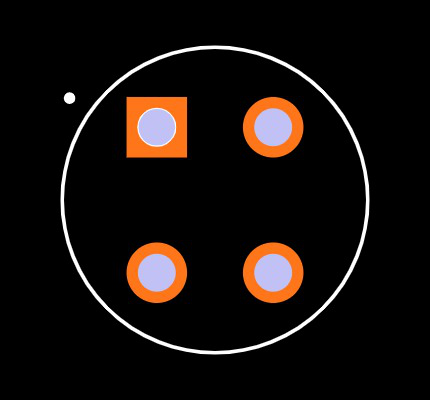

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 12LRS156C
| Part Name | 12LRS156C |
| Manufacturer | Murata Power Solutions |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 10.5 (mm) |
| Dimensions | 10.5 (Dia.) x 8.5 (mm) |
| Mounting Type | Radial |
| Inductance | 15 mH |
| Maximum Dc Current (A) | 95 (mA) |
| Series | 1200LRS |
| Height | 8.5 (mm) |
| Tolerance | ±15 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Dc Resistance | 37 (Ω) |
| Lead Pitch | 5 (mm) |
| Maximum Operating Temperature | +85 (°C) |
Inventory for the 12LRS156C by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
250 x $0.59
|
Visit Site |
No issues have been reported for the 12LRS156C
