Multi-Color LEDs WL-ICLED Chip IC RGB LED Compact If=5mA 80/120/50 mcd 120D Dual Wire
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1311610030140 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

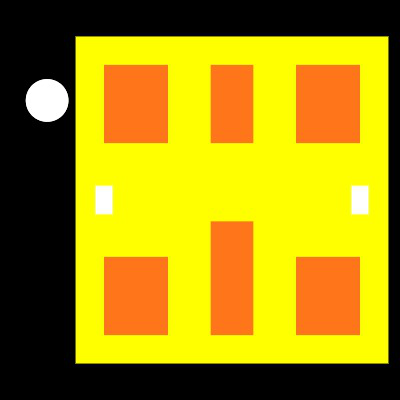

Footprint
No web preview
This Footprint is Available for

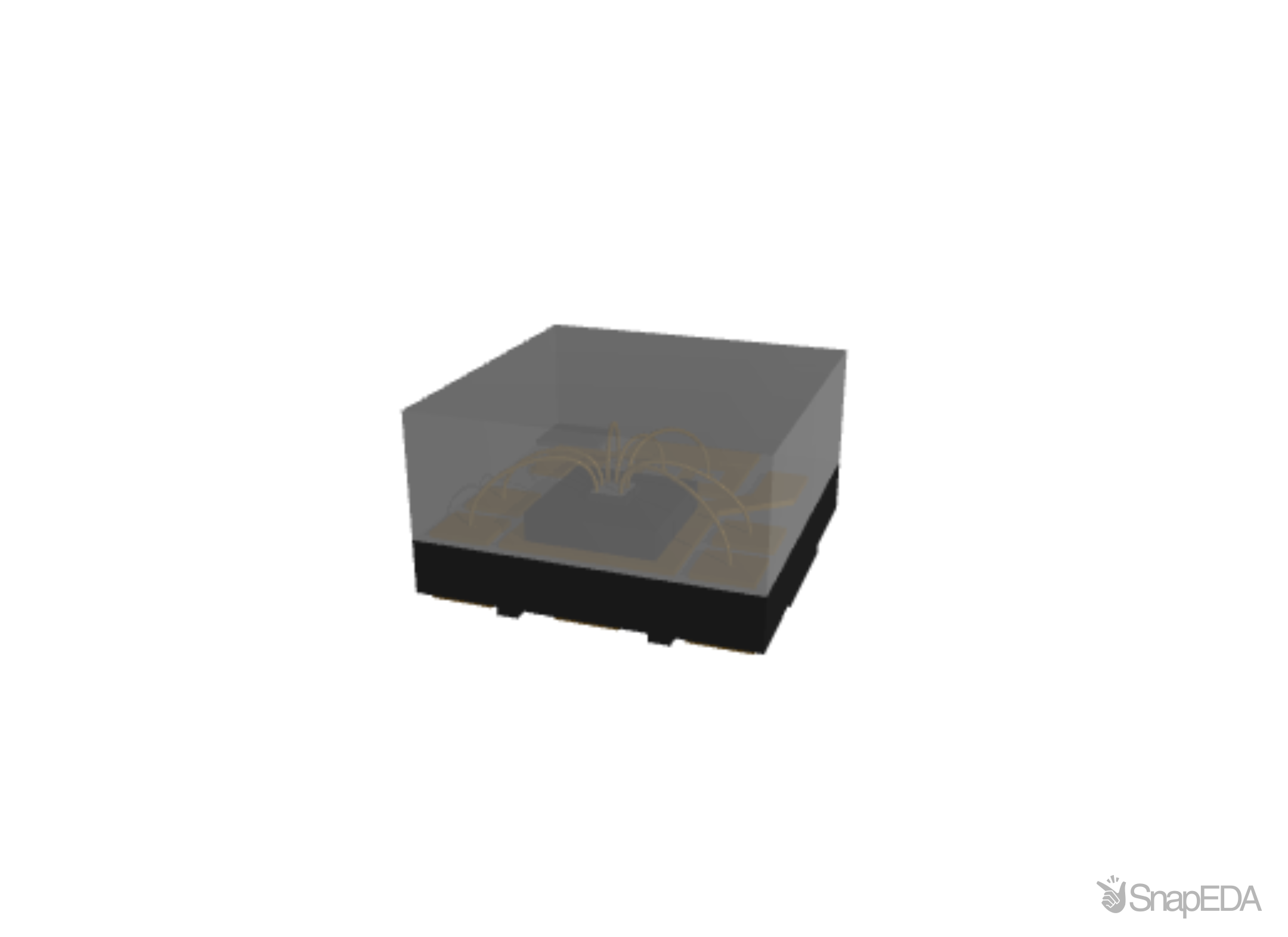

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1311610030140
| Part Name | 1311610030140 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 1616 compact |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | WL-ICLED Chip IC RGB LED Compact, If=5mA, 80/120/50 mcd , 120°, AlInGaP+InGaN, Dual Wire |
| Product Family | Chip LED |
| Weight | 0.0059 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Spq | 3000 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | 7'' Plastic Reel |
| Height | .9 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 1.6 mm |
| Length | 1.6 mm |
| Product Unit | Optoelectronics |
| Product Group Description | IC LEDs |
| RoHS | True |
| Life Cycle Status | New Product |
