1315050930002
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 5V Red, 5V Green, 5V Blue 4-SMD, J-Lead
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1315050930002 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

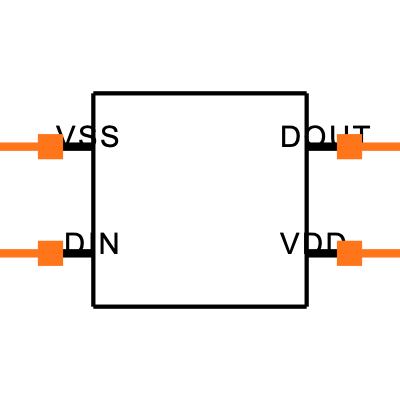

Symbol
No web preview
This Symbol is Available for

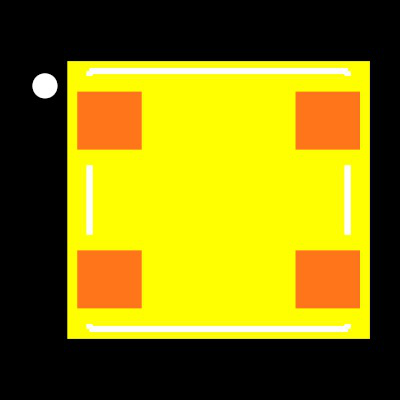

Footprint
No web preview
This Footprint is Available for

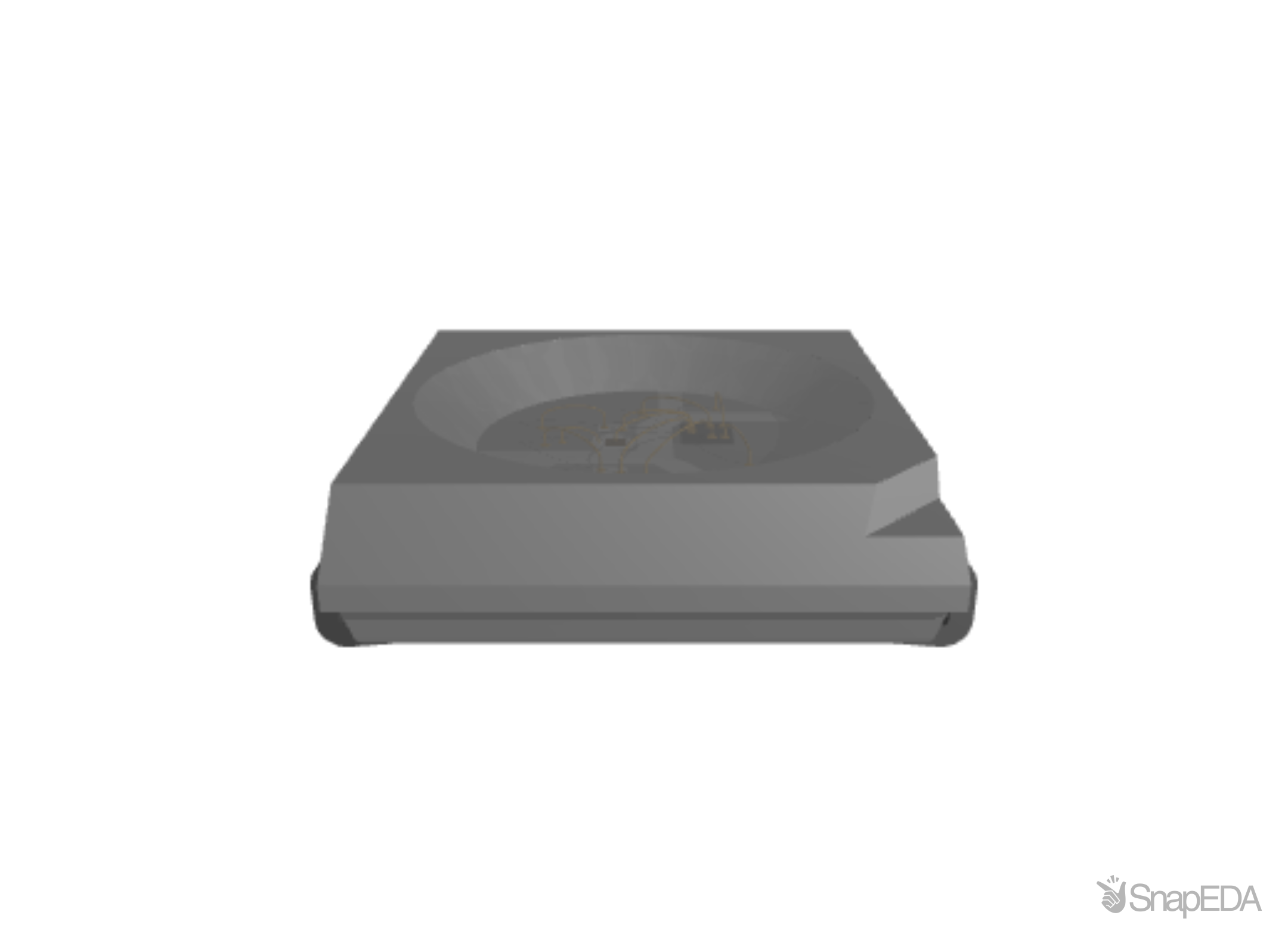

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1315050930002
| Part Name | 1315050930002 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 5050 PLCC4 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | SMT PLCC4 IC RGB LED, typ (@12mA) 625/525/470nm; 450/1300/260 mcd; , 120°; AlInGaP+InGaN; Single Wire |
| Product Family | TOP LED |
| Weight | 0.0076 |
| Ro Hs Approval | Compliant |
| Spq | 1000 |
| Current Revision (A) | 2.2.0 |
| Packaging Type | 7''Reel |
| Height | 1.58 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 5.0 mm |
| Length | 5.4 mm |
| Product Unit | Optoelectronics |
| Product Group Description | IC LEDs |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
