1318164-1
Conn Battery RCP 2 POS Solder ST SMD 1 Terminal 1 Port Reel
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1318164-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

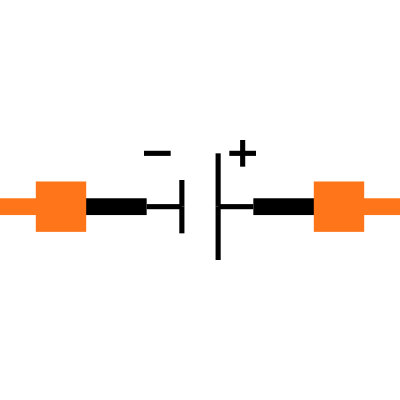

Symbol
No web preview
This Symbol is Available for

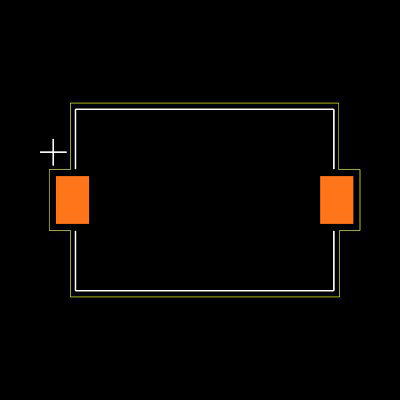

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1318164-1
| Part Name | 1318164-1 |
| Manufacturer | TE Connectivity |
| Battery Dimensions | .264 x .417 |
| Battery Holder Type | Coin Cell |
| Circuit Application | Signal |
| PCB Mount Orientation | Horizontal |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Connector System | Board-to-Board |
| TE Internal Number | 1318164-1 |
| Battery Weight | .07 |
| PCB Mount Alignment | Without |
| Contact Underplating Material | Nickel |
| Battery Compatibility | ML614 |
| Connector Mounting Type | Board Mount |
| Battery Holder Material | Thermoplastic (6T Nylon) |
| Operating Temperature Range | -40 – 85 |
| Packaging Method | Tape & Reel |
| Packaging Quantity | 1500 |
| Number of Positions | 2 |
| Contact Mating Area Plating Material | Gold |
| Battery Holder Color | Black |
| RoHS | True |
| 端子の下地めっきの材料 | Nickel |
| Contact Current Rating (Max) (A) | 7 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
