1318305-1
Conn Housing PL 6 POS 2mm Crimp ST Cable Mount Bag/Box
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1318305-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

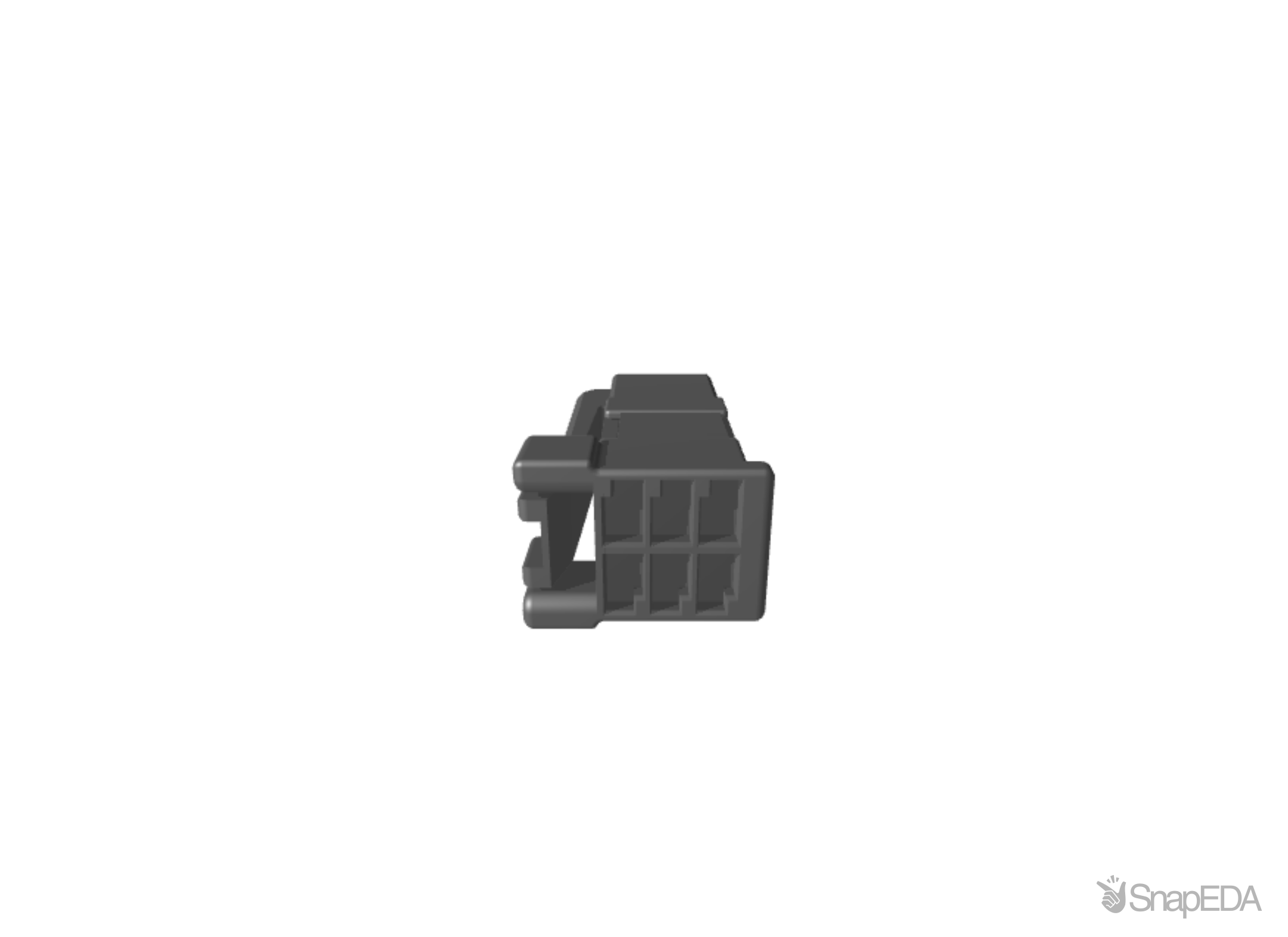

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1318305-1
| Part Name | 1318305-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.5 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| UL Flammability Rating | UL 94-HB |
| Width | 9.5 |
| Operating Voltage (V) | 12 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 6 |
| Operating Temperature Range | -30 – 100 |
| TE Internal Number | 1318305-1 |
| Connector System | Wire-to-Board |
| Number of Rows | 3 |
| Sealable | No |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Hybrid Connector | No |
| Packaging Method | Bag |
| Packaging Quantity | 100 |
| Length | .748 |
| Cable Exit Angle | 180° |
| Serviceable | Yes |
| RoHS | True |
| Mating Tab Width | .64 |
| Strain Relief | No |
| Color | Blue |
| Body Material | PBT |
| Height | 10.7 |
| Row-to-Row Spacing | .232 |
| Primary Locking Feature | On the Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1318305-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
7,200 x $0.30
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Mouser |
|
7,200 x $0.24
|
Visit Site |
No issues have been reported for the 1318305-1
If you experienced any issues with this part, please report it.
