1318384-2
Cap Assembly, H, 2 row, 40 way, Pin 025 | TE Connectivity 1318384-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1318384-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

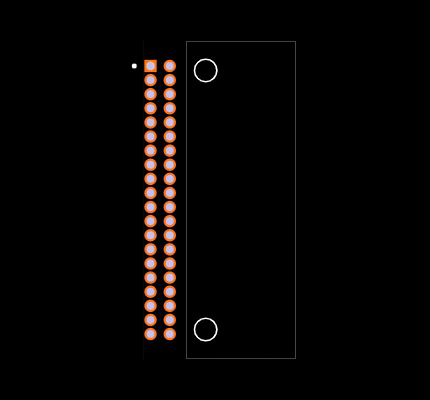

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1318384-2
| Part Name | 1318384-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .087 |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94-HB |
| Width | 1.945 |
| Operating Voltage (V) | 12 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Tab Thickness | .64 |
| PCB Thickness (Recommended) | 1.2 1.6 |
| Operating Temperature (Max) | 110 |
| TE Internal Number | 1318384-2 |
| PCB Mount Alignment | Without |
| Number of Rows | 2 |
| Voltage Rating (Max) (V) | 12 |
| Termination Method | Through Hole - Solder |
| Number of Signal Positions | 40 |
| Sealable | No |
| Number of Sections | 1 |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -30 to 150 |
| Shielded | No |
| Mounting Holes | With |
| Locking Interface | With |
| Length | .963 |
| RoHS | True |
| Tab Width | .025 |
| Color | Natural |
| Hybrid Header | No |
| Profile Height from PCB | 15.5 |
| Packaging Type | Tube |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | TH 025 |
| Mounting Type | Through Hole |
| Gender | Female |
| Colour | Natural |
| Height | 15.5 (mm) |
| Housing Material | PBT |
| Width | 49.4 (mm) |
| Depth | 24.47 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 40 |
| Type | Automotive wiring connector |
| Contact Material | Brass |
Inventory for the 1318384-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,508
|
|
Visit Site | |
|
★ Featured
|
4,820
|
151 x $2.00
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
162 x $3.21
|
Visit Site | |
| Chip One Stop |
699
|
1 x $1.76
|
Visit Site | |
| Farnell UK |
246
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| Onlinecomponents |
99
|
|
Visit Site | |
| RS UK |
1
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TE Store |
34
|
|
Visit Site | |
| TTI Americas |
117
|
|
Visit Site | |
| Verical |
99
|
18 x $3.89
|
Visit Site | |
| element14 Singapore |
246
|
|
Visit Site |
